   KD150-U2
Multi-angle Exhibition|Technical Data|Product introduction

Multi-angle Exhibition
Technical Data
Finished motorcycle     Power system   Suspension system
Length (mm) 1980 Organism aluminium alloy Frame system high-tensile steel
Width (mm) 865 Valve number single cylinde Tire structure Bias tyre
Height (mm) 1070 Camshaft system inner camshaft Front rim size MT3.0×17
Wheelbase (mm) 1380 Bore X Stroke (mm) 58.0 x 56.7 Rear rim size MT3.5×17
Ground clearance (mm) 160 Cooling system water cooling Front tire size 110/70-17
Fuel tank volume (L) 12.5 Fuel 95 and above Rear tire size 130/70-17
Cushion distance from earth (mm) 800(High version) 770(Low version) Compression ratio  12.5:1 Front brake system disc brake
    Displacement 149.8 Rear brake system disc brake
    Fuel supply system fuel injection Headlight/Tail light/Turning light LED
      Fuel injection system Bosch Brake system Dual channel ABS
      Ignition system electric ignition
      Transmission system chain drive
      Idling speed(r/min)  1500 ± 100
      Maximum power (kW/rpm) 14 / 9250
      Maximum torque (N.m/rpm) 16 / 7500
      Transmission constant mesh 6-section transmission
      Gear shift pattern International gear
      Clutch Wet type multi-pieces
      fuel consumption (L/km) 1.8 /100



KD150-U2
Flexible and light handling, and taking into account the motorcycle brigade (500 km cruise), thanks to the newly designed high compression ratio water-cooled engine, free to live as you want.
Keyless control system
Carry-on a keyless system transponder with you, and it can be unlocked by induction within 1.5 meters of the vehicle (the transponder is placed in a backpack or pocket, and no need to take it out). It can be unlocked by induction, and It will be locked by induction when you leave.Motorcycle electronic lock, give you a wonderfully experience.

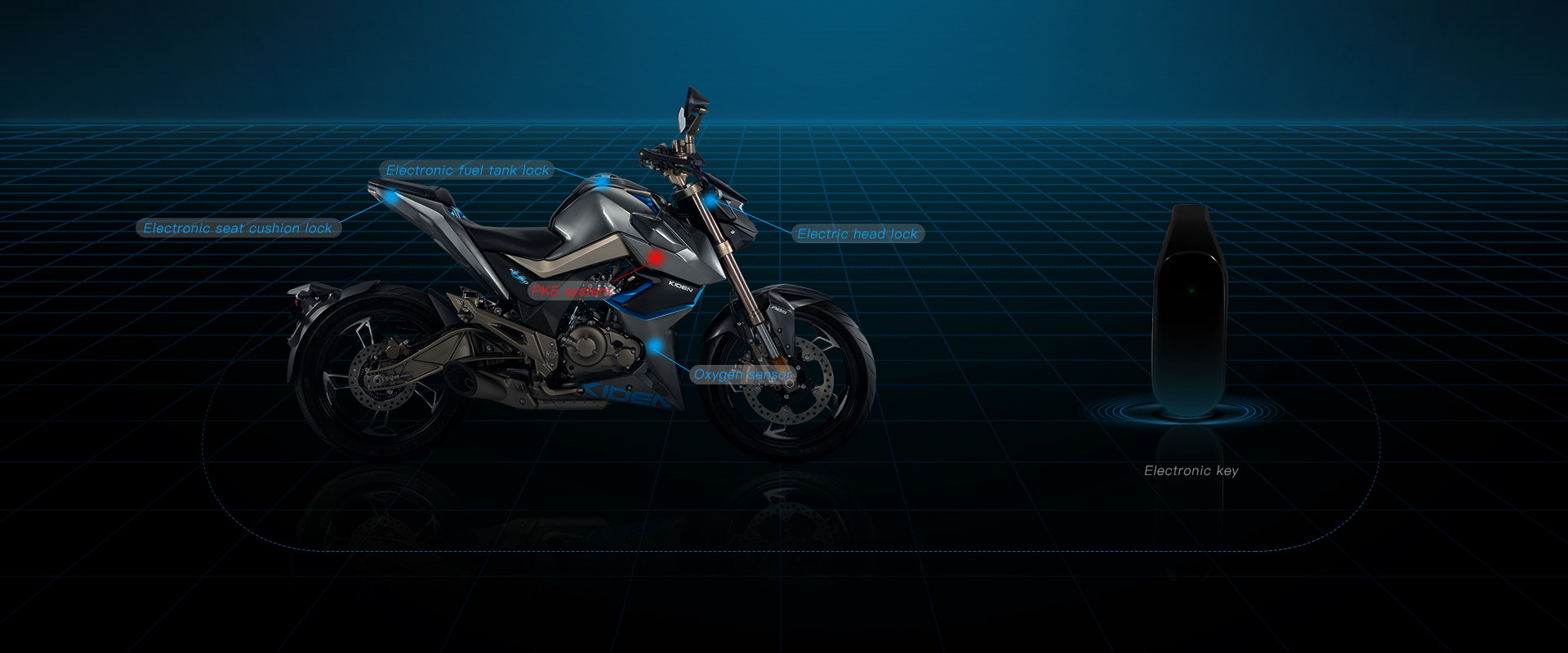

Electric function
The electric fuel tank cap, electric cushion lock, and electric head lock make traditional keys seem pallid by comparison.The buttons are distributed on the left and right handlebars, which facilitates the rider to press at any time.
Fuel-saving and sporting dual mode
The cyclist can switch between the two modes (E is fuel-efficient mode, S is sports mode) by pressing the button on the right handlebar, which fully satisfies the fuel-saving demand during the long-distance travel and the swift and fierce experience demand of cycling in cities.
Pure-aluminum cylinder
The inner wall of the cylinder without liner is thin due to the completely home-made pure-aluminum cylinder from die-casting to processing, and the space saved is used to widen the water passage, so as to take away the heat in the cylinder quickly. The good heat dissipation performance is an important factor to guarantee the improvement of the engine performance and the extending of engine life.
Galvanized plus paint fuel tank
Prevent oil filter cotton from plugging and oil tank leakage due to rust.

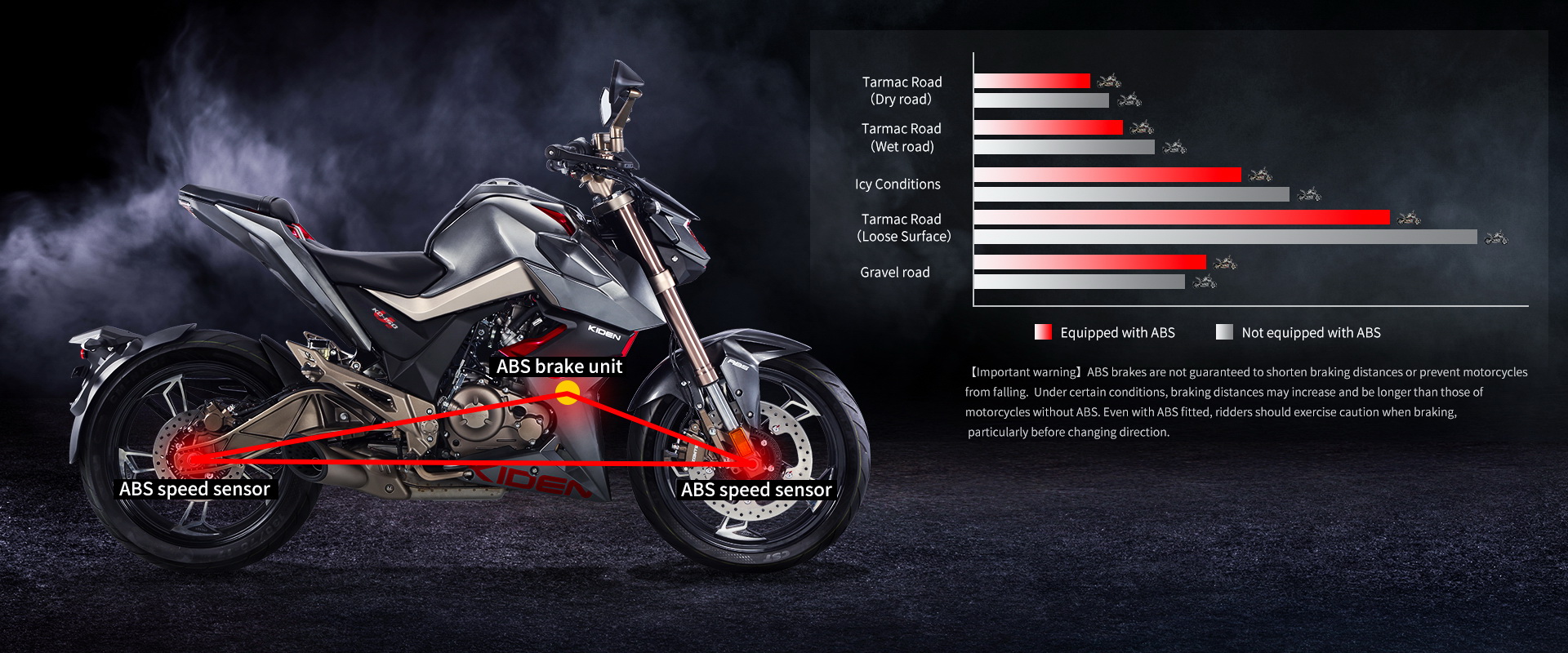

Equipped with dual channel ABS
The dual-channel ABS system allows the rider to calmly control the scooter in any unexpected situation. The ABS system will bring confidence to whatever you want, whether in sand, rain or snow.
10AH solid lead acid battery
There are a few of 150 vehicles using such a large-capacity battery, which provides sufficient guarantee for starting in the winter and installing spotlights, and has a built-in charging port that can be used to charge the vehicle with an external charger (the charger is a separate purchase paid by yourself).
Lightweight aluminum alloy wheels
Wide rims and hollow interior design ensure good strength and toughness.
Large diameter disc brake disc plate
Provides more powerful braking force and more linear braking feel
The motorcycle LED lights
Automotive level LED light source, color temperature natural soft; The integral aluminum alloy die-casting rear shell of the headlamp can significantly improve the heat dissipation efficiency, make the illumination field of vision brighter, the light decay smaller and the life longer.
Central shock absorption
The central rear shock absorption uses a high-pressure nitrogen filled airbag design to reduce the temperature of the hydraulic oil; high-speed driving can provide greater restoring damping force, and the high-pressure nitrogen in the airbag can also change the characteristics of the air spring inside the shock absorption. Comfort-oriented, spring preload is small, sports stroke is increased; riding comfort is improved, long-distance riding without fatigue.
Stainless steel bottom muffler
All aluminum alloy anti-hot plate, the design is delicate and beautiful; The whole section USES automotive special stainless steel exhaust, high and low temperature resistance, corrosion resistance, to ensure a long service life; Euro 4 standards, safer and more environmentally friendly.
Specially shaped split seat cushion
Tayo's unique automatic seat cushion production line combines special anti-foaming sponge forming technology, so that soft sponges become angular, together with lint-cotton bonding, making it away from flaking and deformation. The front and rear seat cushions are separated, and the shape is more radical and full of sports style.
Dual-channel fast-charging USB output port
The dual-port USB charger makes full use of the installation space and can output 2.1A heavy current to charge two USB charging devices at the same time. The charging speed is faster and the performance is more stable. It is designed with waterproof, moisture-proof, and anti-seismic structure, which brings great convenience for the journey.
Aluminum alloy rear fork
Through the combination of material and casting process, the flexibility of aluminum alloy is close to that of steel tube, bending and torsion are difficult to break, and the characteristics of light weight and good rigidity of aluminum alloy are given full play.
Intelligent digital meter with full liquid crystal display
LCD intelligent digital instrument clear, concise, arrangement of progressive type speed light novel dynamic and abandoned the traditional mechanical front wheel speed line output structure, advanced electronic sensor combination instrument instead of chip intelligent processing, not only display precision, fast response, and more dustproof, waterproof.
Full section aluminum alloy rear fender bracket
The aluminum alloy rear auxiliary fender which is standard configuration can effectively shields the muddy water from the rear wheel after after the extension of the auxiliary fender,and makes the cyclist worry-free during rainy days.
Integrated forged hand guard
The aluminum alloy forged handguard is solid and strong to ensure the safety of the rider.
High compression ratio engine
The KD150-U2 engine has a high compression ratio of 12.5: 1, and can obtain a power output of 13KW and 16N.M at a very low fuel consumption. It is a characteristic of high compression ratio engines. To successfully use high compression ratio technology, it is necessary to overcome the technical difficulties of engine materials, molding processes, and structural design that are different from ordinary engines
Large area radiator
Integral large area water-cooled radiator,heat dissipation efficiency is higher.
Sliding clutch
It is equivalent to adding a layer of transmission protection between the engine and the rear wheel to reduce the impulse phenomenon of the clutch when the speed difference is too large; make the clutch handle lighter.
