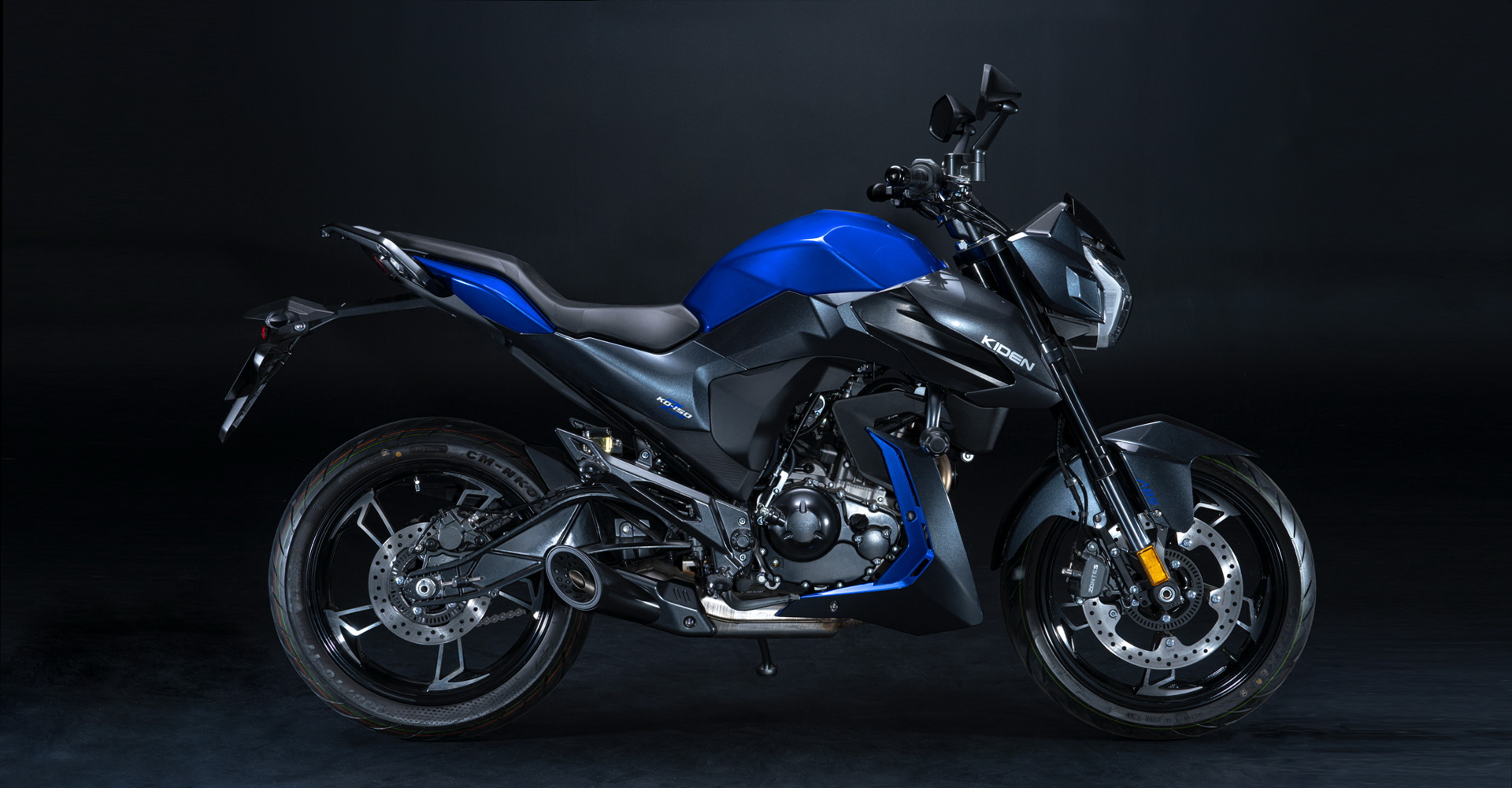

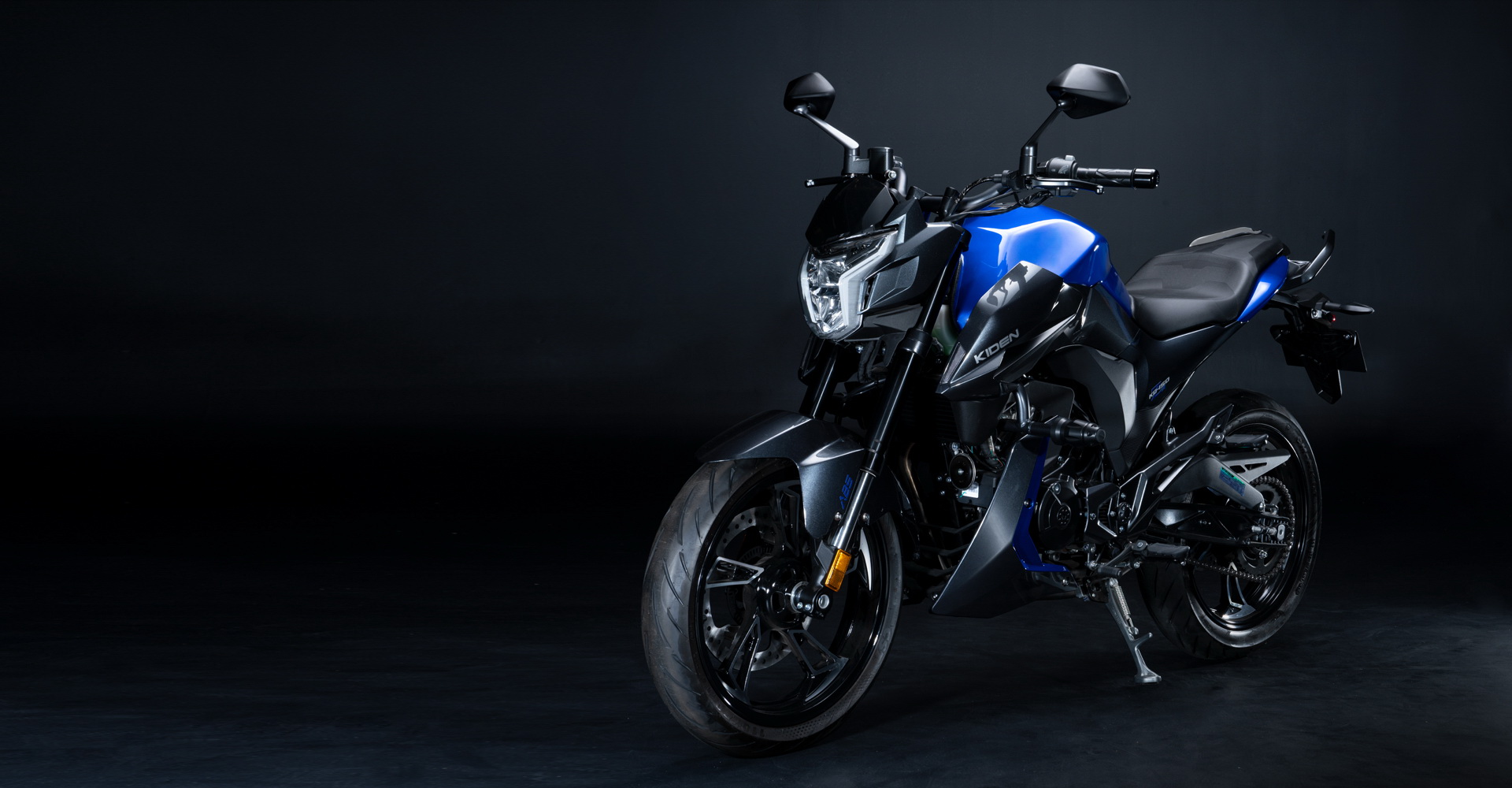

Multi-angle Exhibition
Technical Data
Whole vehicle     Power system   Suspension system
Length (mm) 2055 The body Aluminum alloy Frame system Steel pipe frame
Width (mm) 790 Cylinder number Single cylinder  Tire structure Bias tyre
Height (mm) 1105 Camshaft mode Single overhead camshaft(SOHC) Front rim specification MT:3.0×17
Wheel base (mm) 1360 Bore X Stoke (mm) 58.0 x 56.7 Rear rim specification MT:3.5×17
Net weight(kg) 140 Cooling system Water cooling Front tire specification 110/70-17
Load weight(kg) 152 Fuel 95 and above Rear tire specification 130/70-17
Minimum ground clearance (mm) 198 Compression ratio 12.5:1 Front brake specification Disc brake
Gasoline tank volume (L) 17 Displacement 150 Rear brake specification Disc brake
Seat height (mm) 770 Fuel supply method Intelligent electrical fuel injection Headlamp/tail light/steering lamp LED
    Electrical fuel injection system BOSCH Brake system Dual channel ABS
    Ignition mode Electronic ignition
    Transmission mode Chain drive
    Idle speed (r/min) 1500 ± 100
    Maximum power (kW/rpm) 14 / 9250
    Maximum torsion (N.m/rpm) 16 / 7500
    Gearbox Constant mesh 6-section transmission
    Shift mode International gears
    Clutch Wet multi-disk type
    Economical consumption of fuel (L/km) 1.8 /100

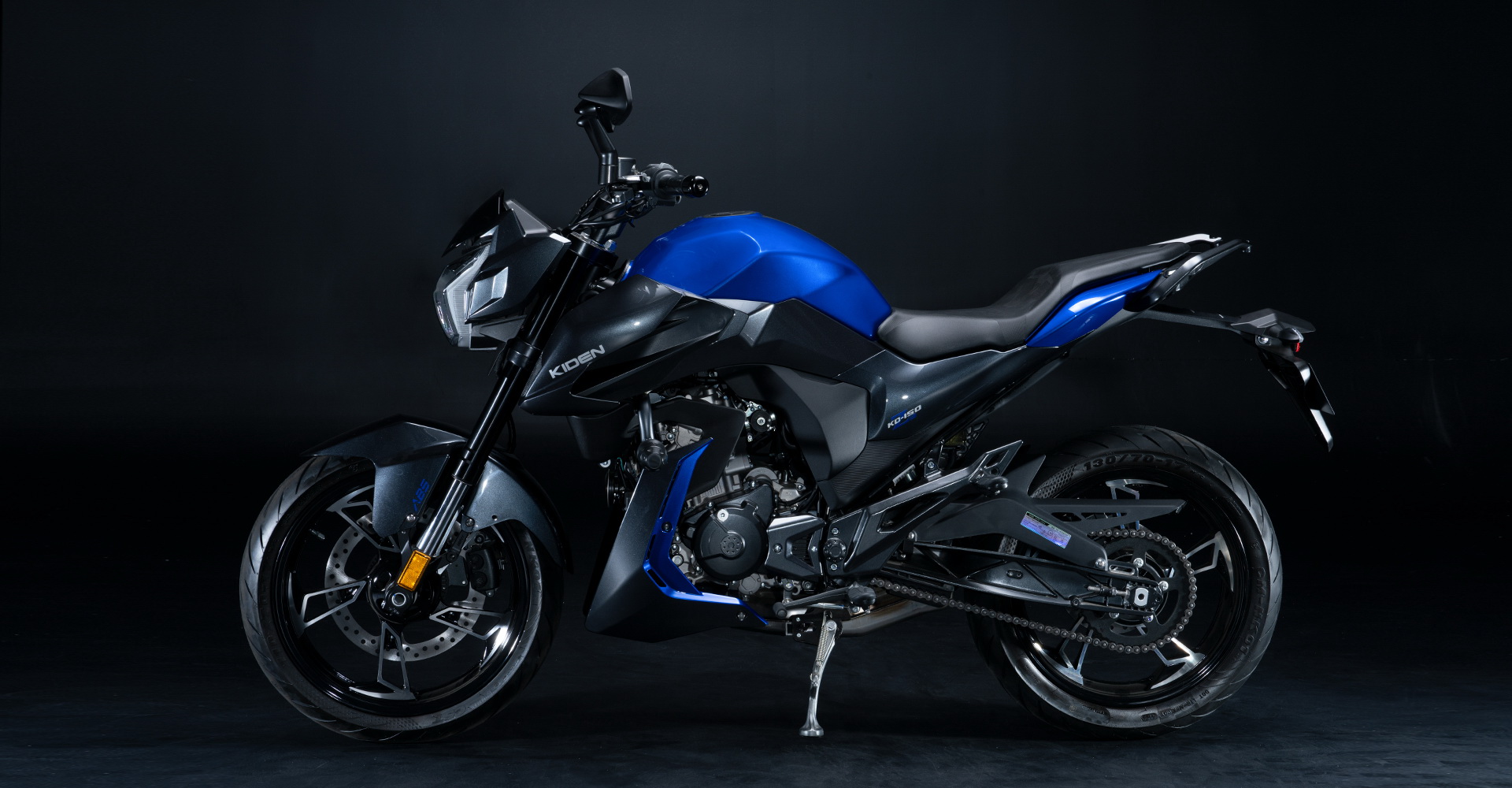

KD150-Z

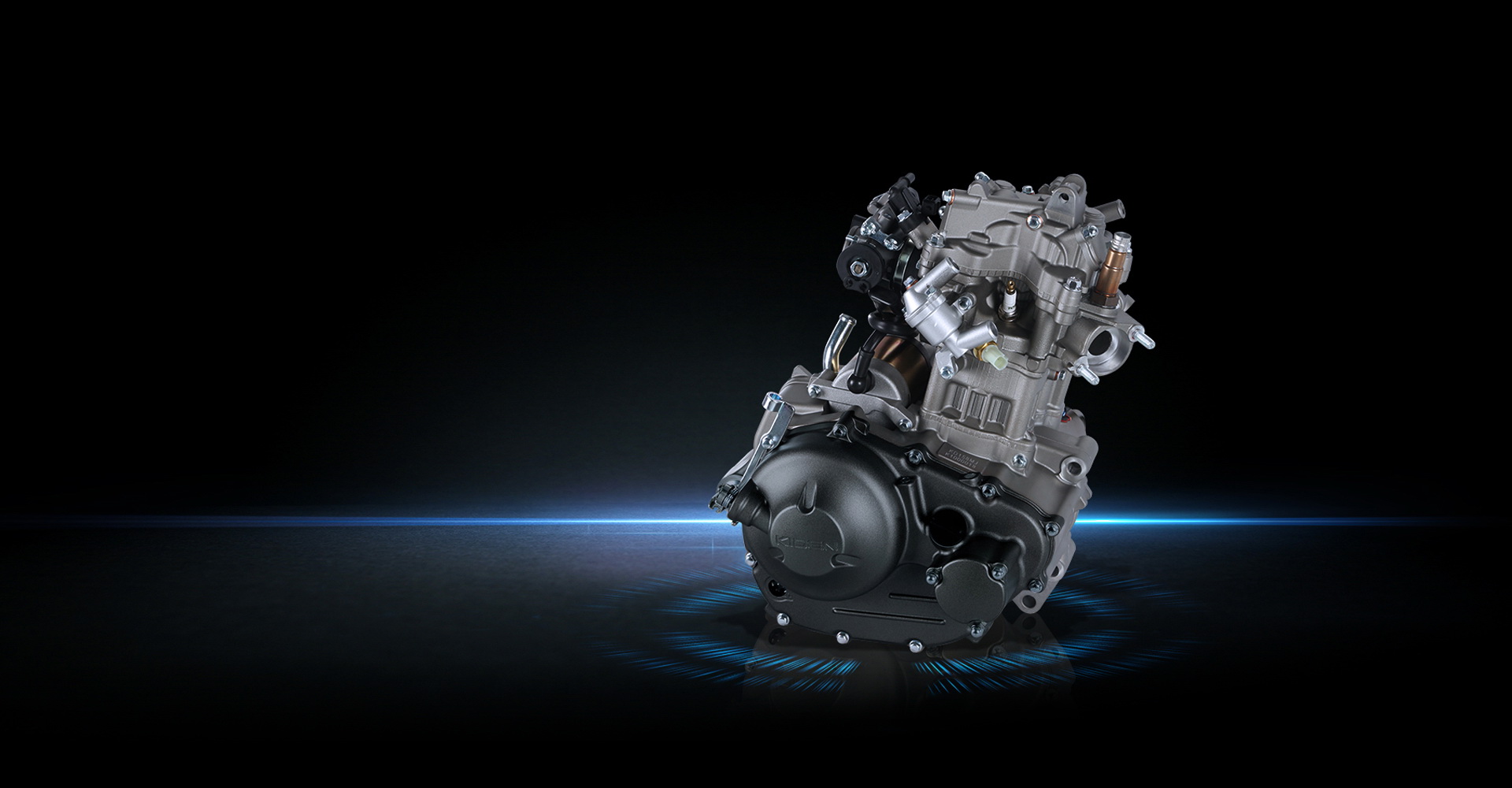

高性能水冷发动机
High compression ratio engine
The engine has a high compression ratio of 12.5: 1, and a very low fuel consumption can obtain a power output of 14KW and 16N.M. The high compression ratio engine is the current development trend of advanced technology of internal combustion engines in the world. The characteristics of the compression ratio engine, in order to successfully use the high compression ratio technology, it is necessary to overcome the technical difficulties of the engine material, molding process, structural design and other aspects that are different from the ordinary engine.

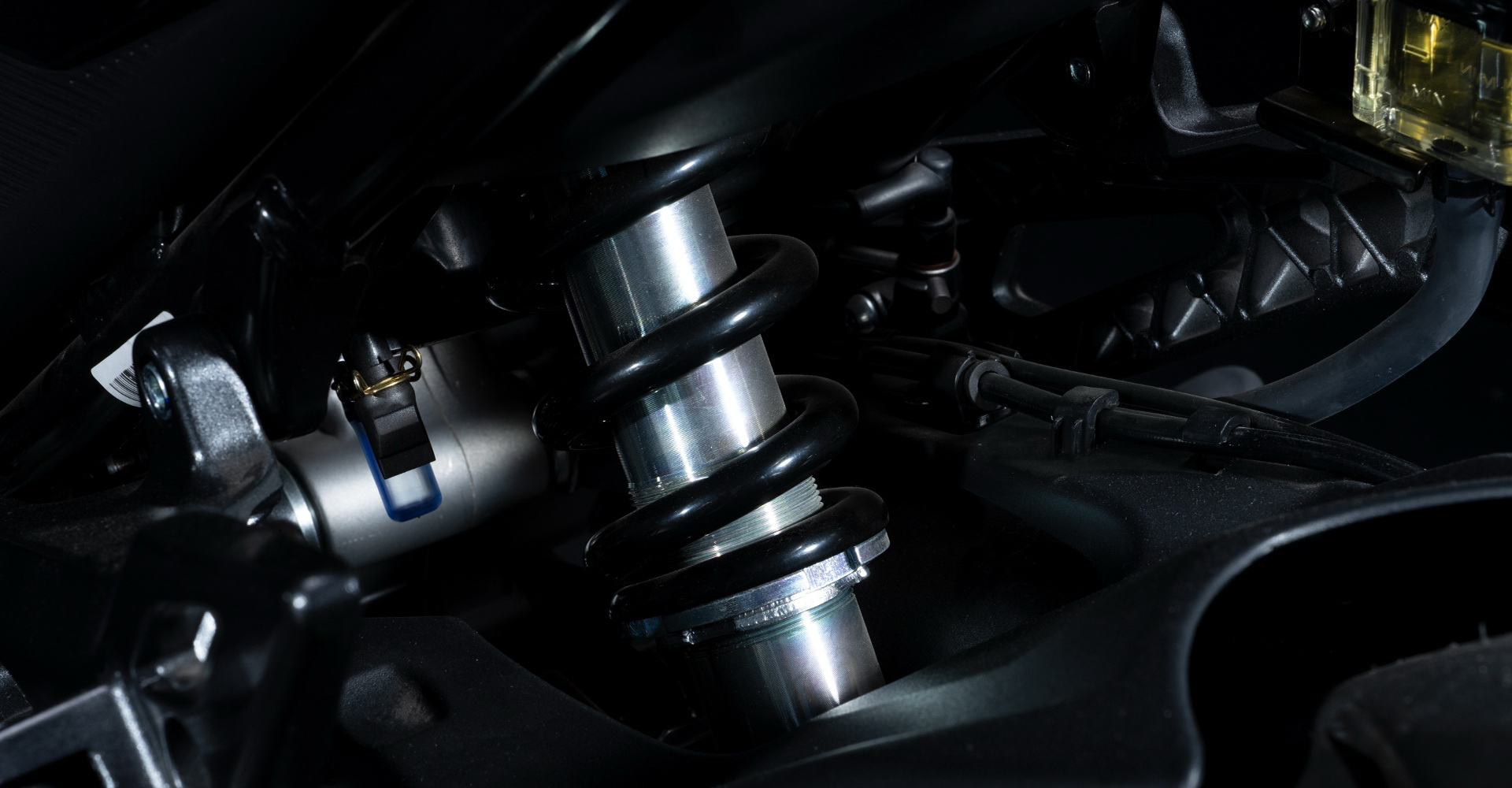

Central shock absorber
The mono rear shock absorber adopts the design of built-in air bag filled with high-pressure nitrogen to reduce the temperature of hydraulic oil.High-speed driving can provide greater recovery damping force, and at the same time, the high-pressure nitrogen in the airbag can also change the characteristics of the air spring inside the shock absorber. The overall design is guided by comfort, with small spring preload and increased movement stroke;Improve the riding comfort, long-distance trek without fatigue.

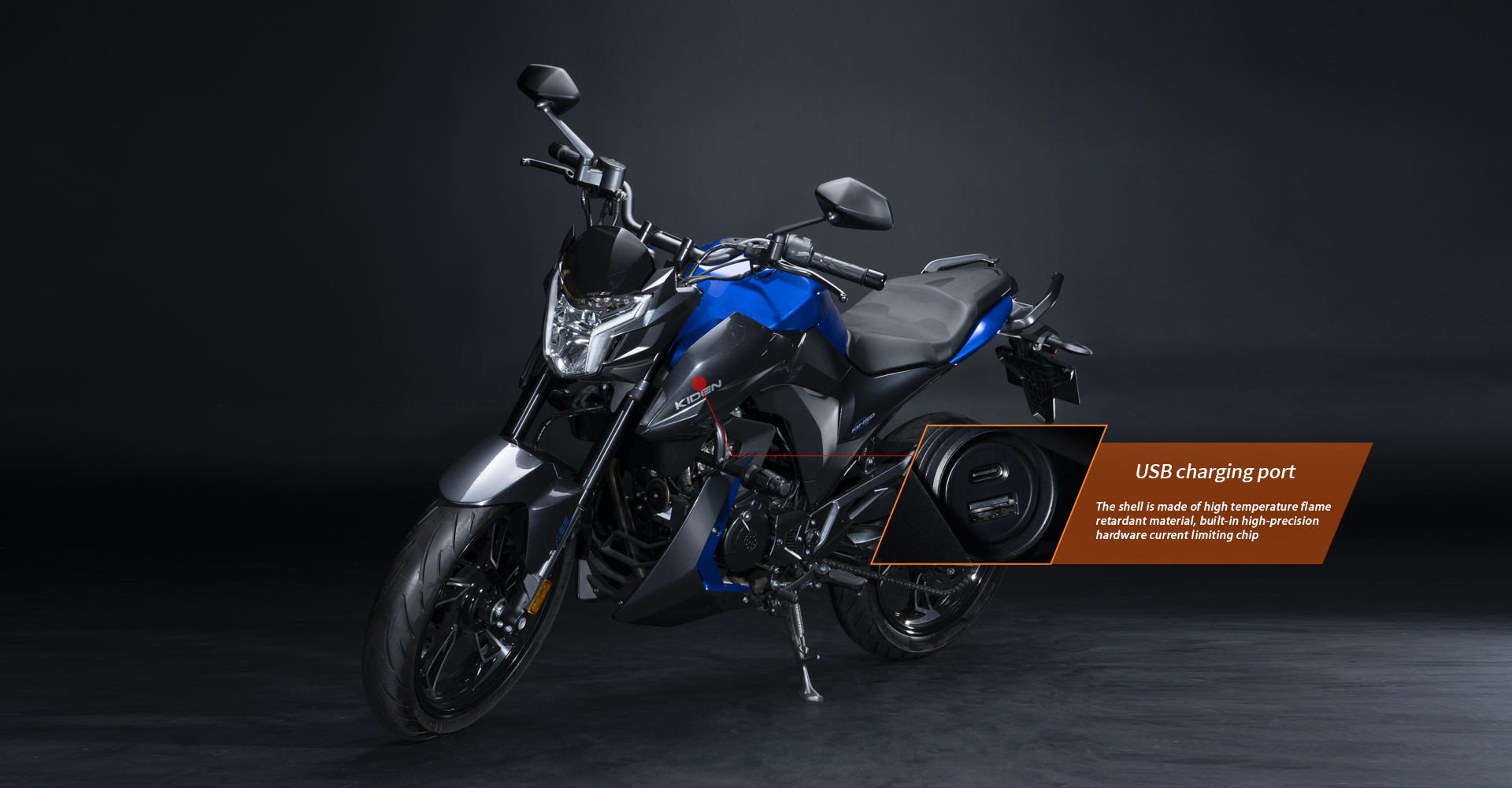

Dual fast charging USB ports
The USB charger (fast charging version) provides two USB output ports that support QC3.0 fast chargingprotocol for riders. During fast charging, the output power of a single port can reach 18W. The shell is made of high temperature flame retardant material, built-in high-precision hardware current limiting chip, which can ensure that each ports works within the safe current range, effectively preventing the occurrence of output overcurrent, input overvoltage, output short circuit, etc., greatly improving safety.

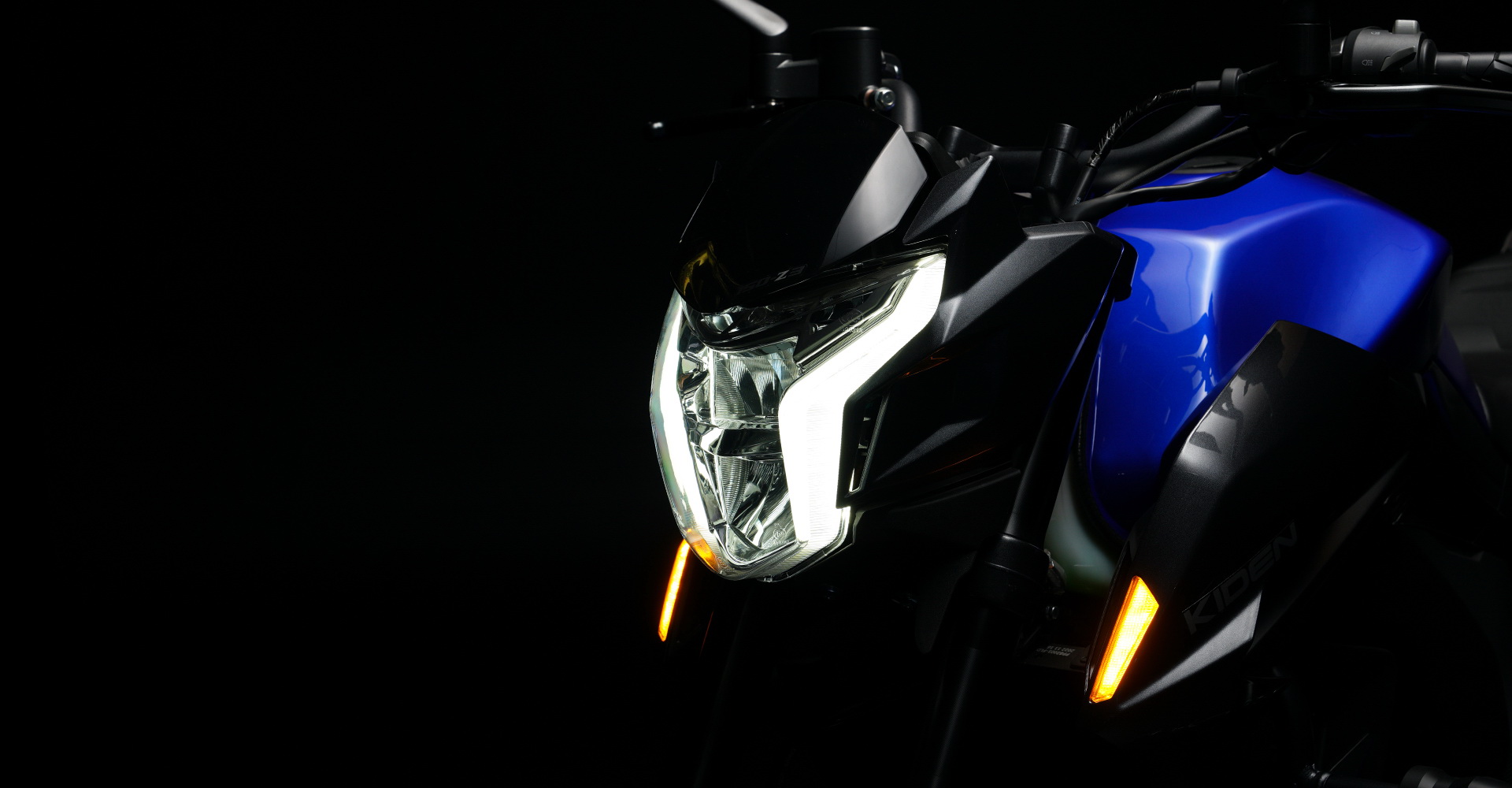

Whole Motorcycle LED Light
The LED light source is used, with a natural and soft color temperature.Achieve a brighter illumination field, smaller light decay and longer service life.
Equipped with dual channel ABS
The dual-channel ABS system allows the rider to calmly control the scooter in any unexpected situation. The ABS system will bring confidence to whatever you want, whether in sand, rain or snow.

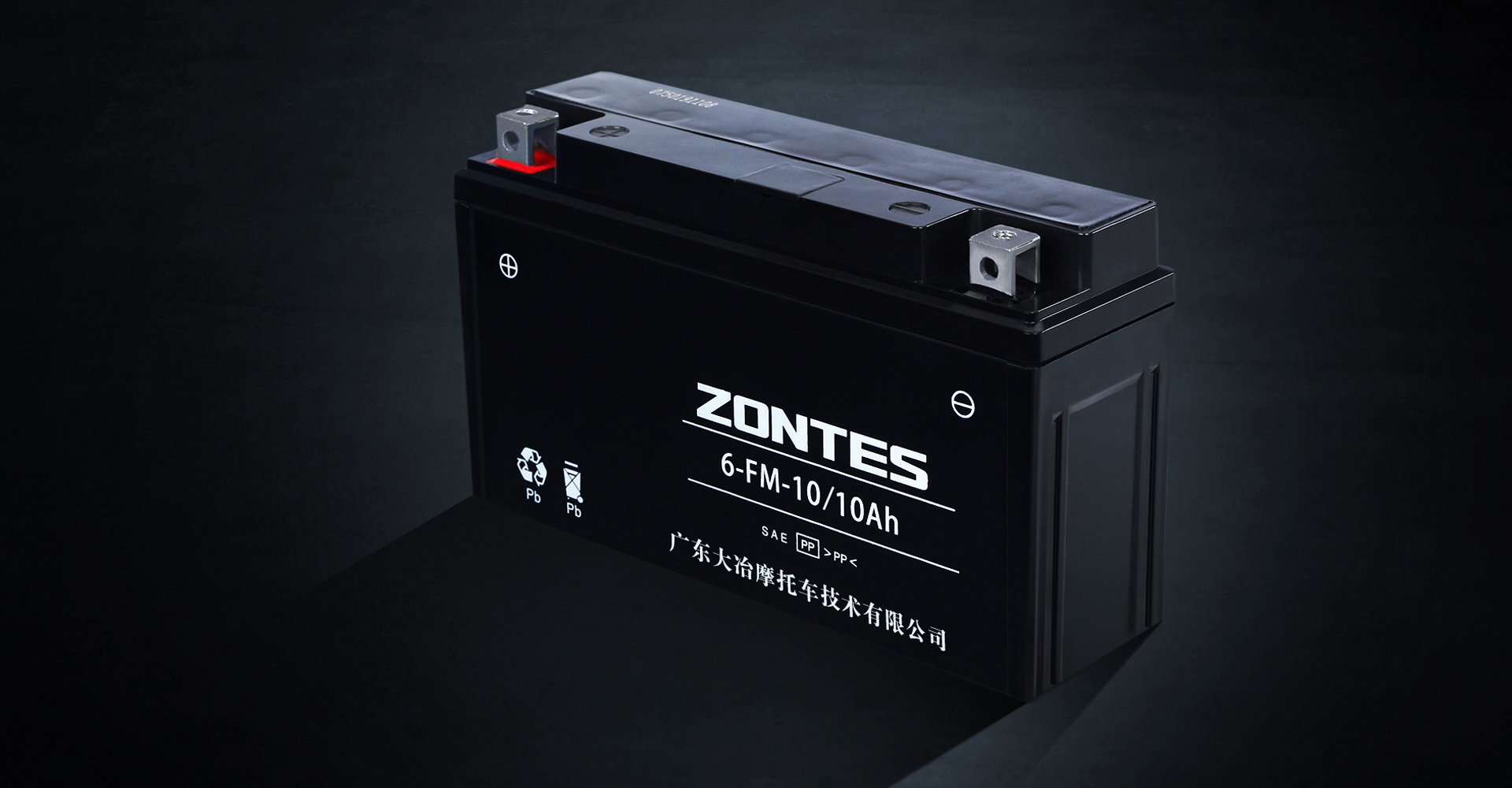

10AH solid lead-acid battery

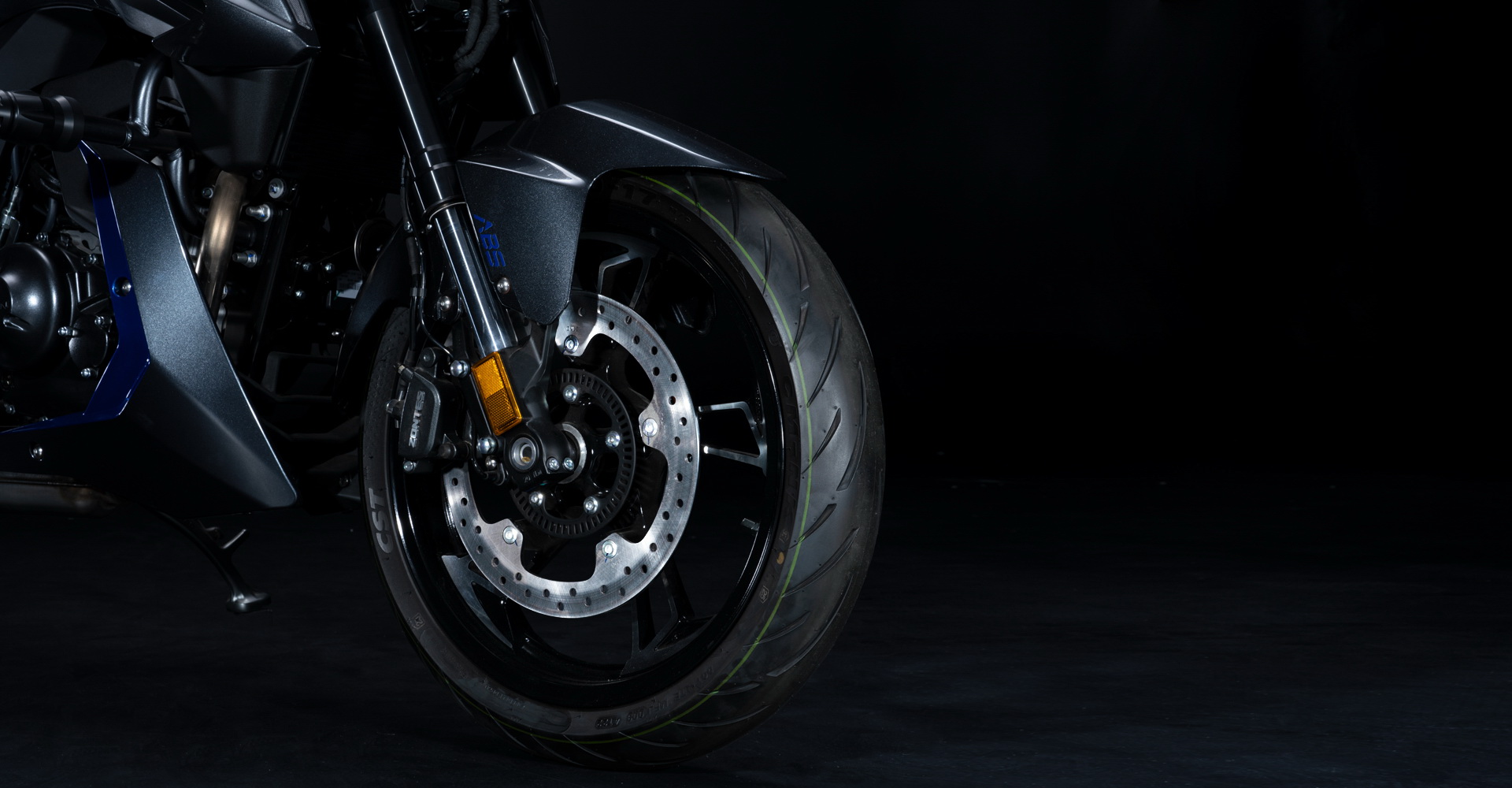

Large diameter disc brake disc
Provide more powerful braking force, more linear braking feel

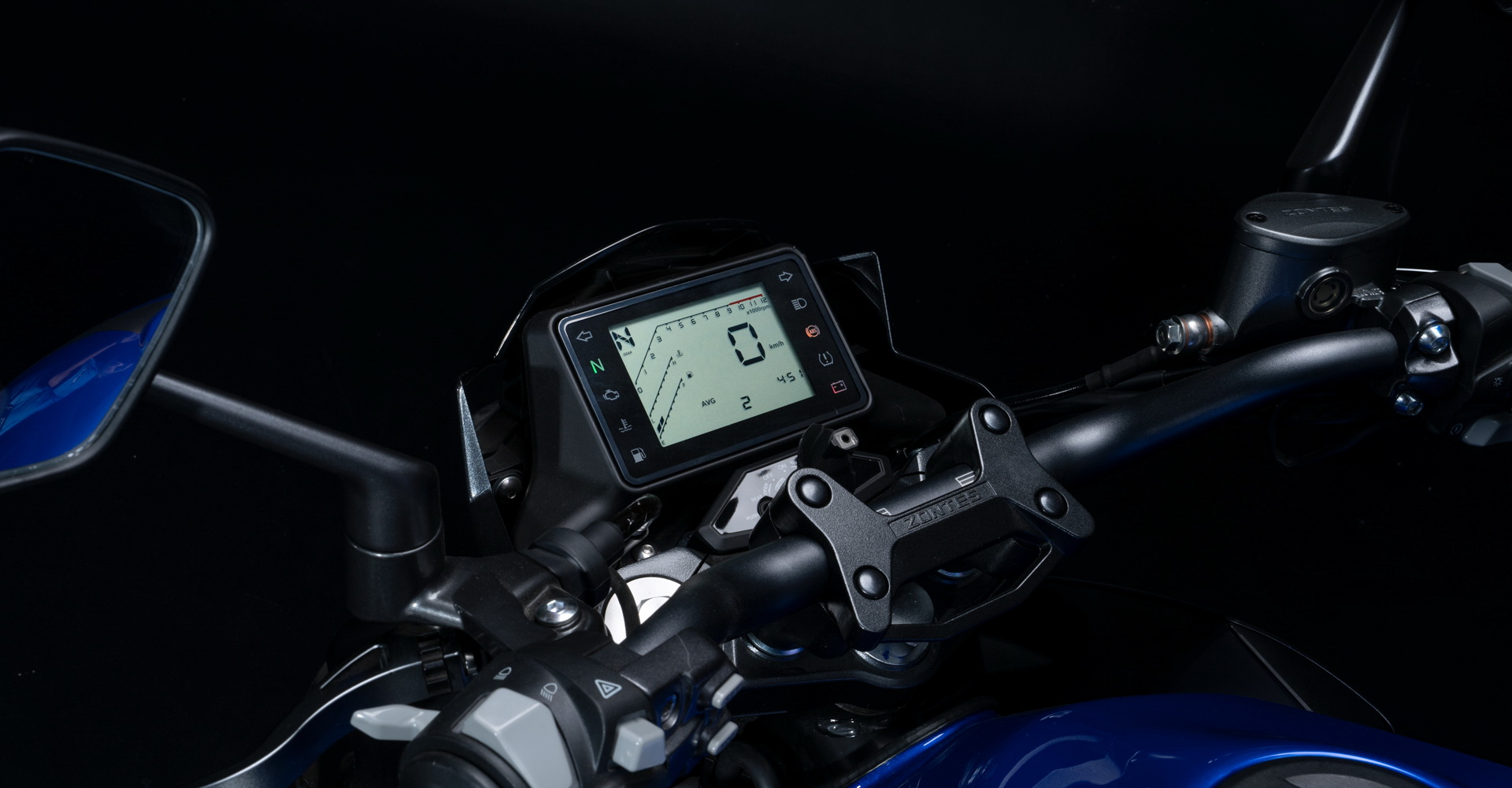

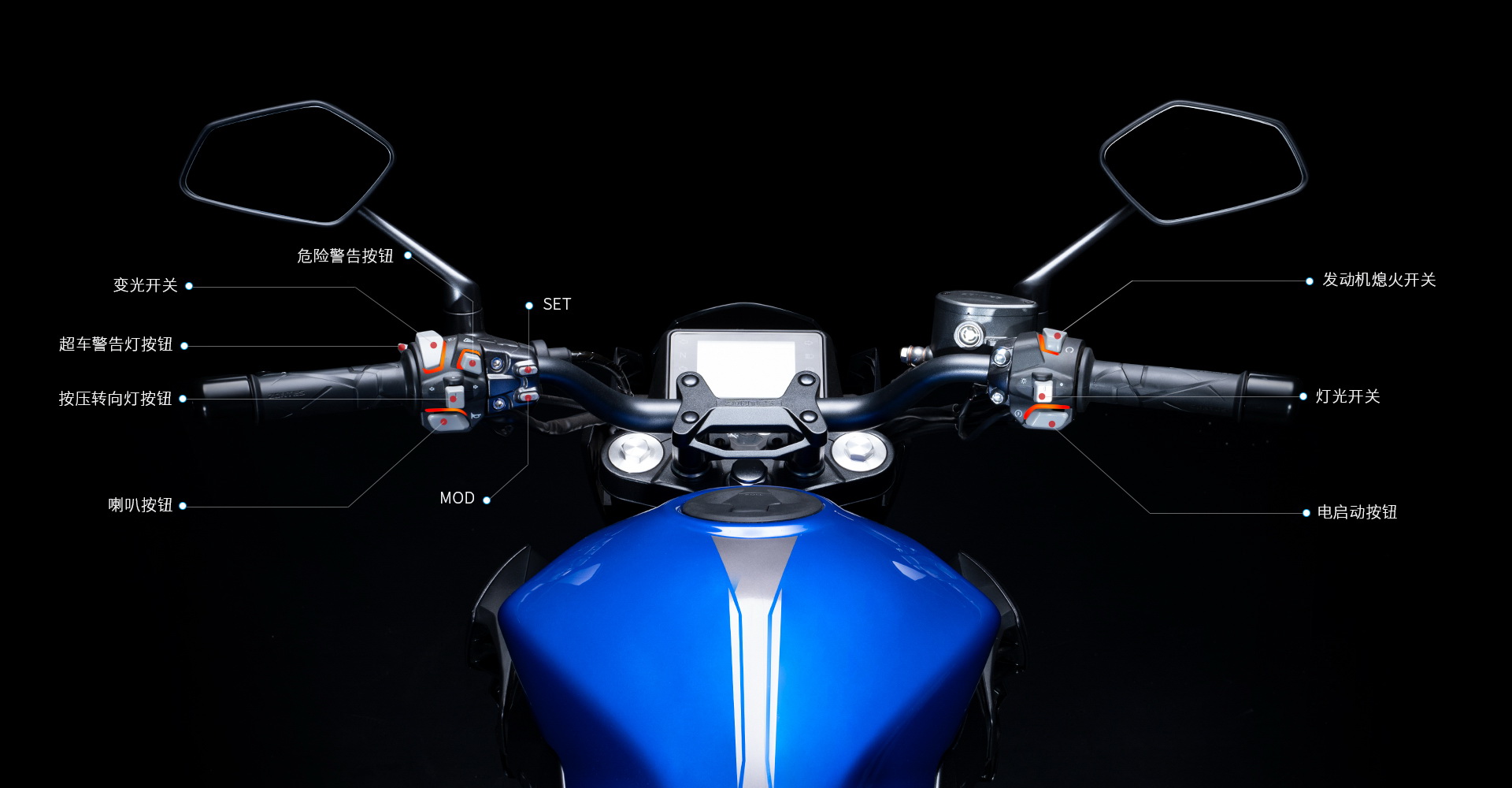

Intelligent digital instrument with full LCD display
LCD intelligent digital instrument clear, concise, arrangement of progressive type speed light novel dynamic and abandoned the traditional mechanical front wheel speed line output structure, advanced electronic sensor combination instrument instead of chip intelligent processing.
Tire pressure monitoring system
Adopt imported chips to achieve high-precision monitoring.When the tire pressure is abnormal during running, it quickly locks the front and rear wheels and flashes a warning prompt on the instrument. With learning matching function, high pressure alarm function, low pressure alarm function, high temperature alarm function, rapid air leakage alarm, sensor low battery alarm, sensor signal loss alarm, etc. The tire pressure monitoring system will effectively avoid flat tires and increase driving safety; avoid damage to tires at low air pressure and extend tire life; reduce fuel consumption; and maintain the best handling performance.

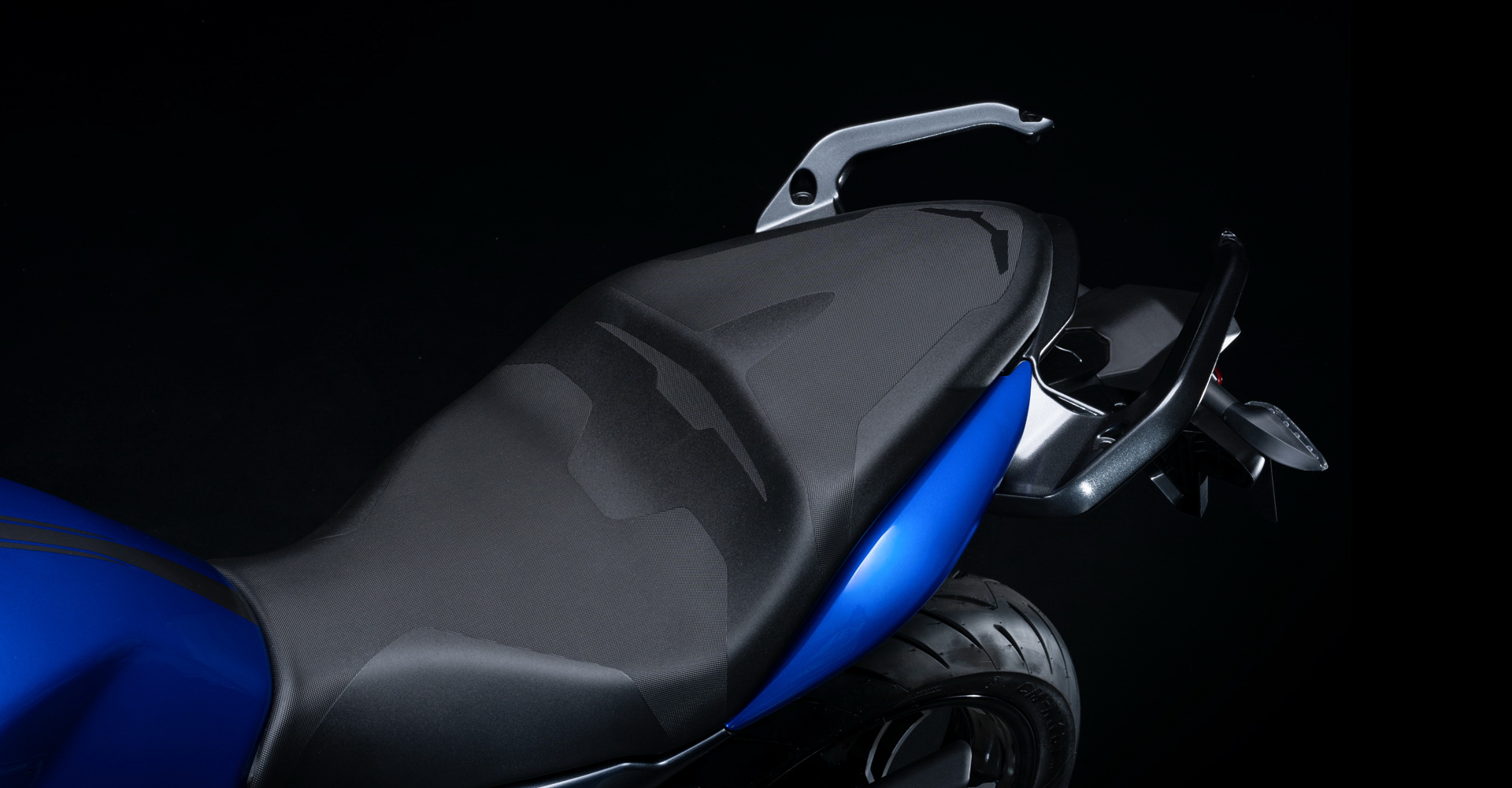

Specially Shaped Integral Seat Cushion
Tayo's unique automatic cushion production line combines with the unique anti-foaming sponge forming technology, make the soft sponge fit more closely with the skin without flaking and deformation.

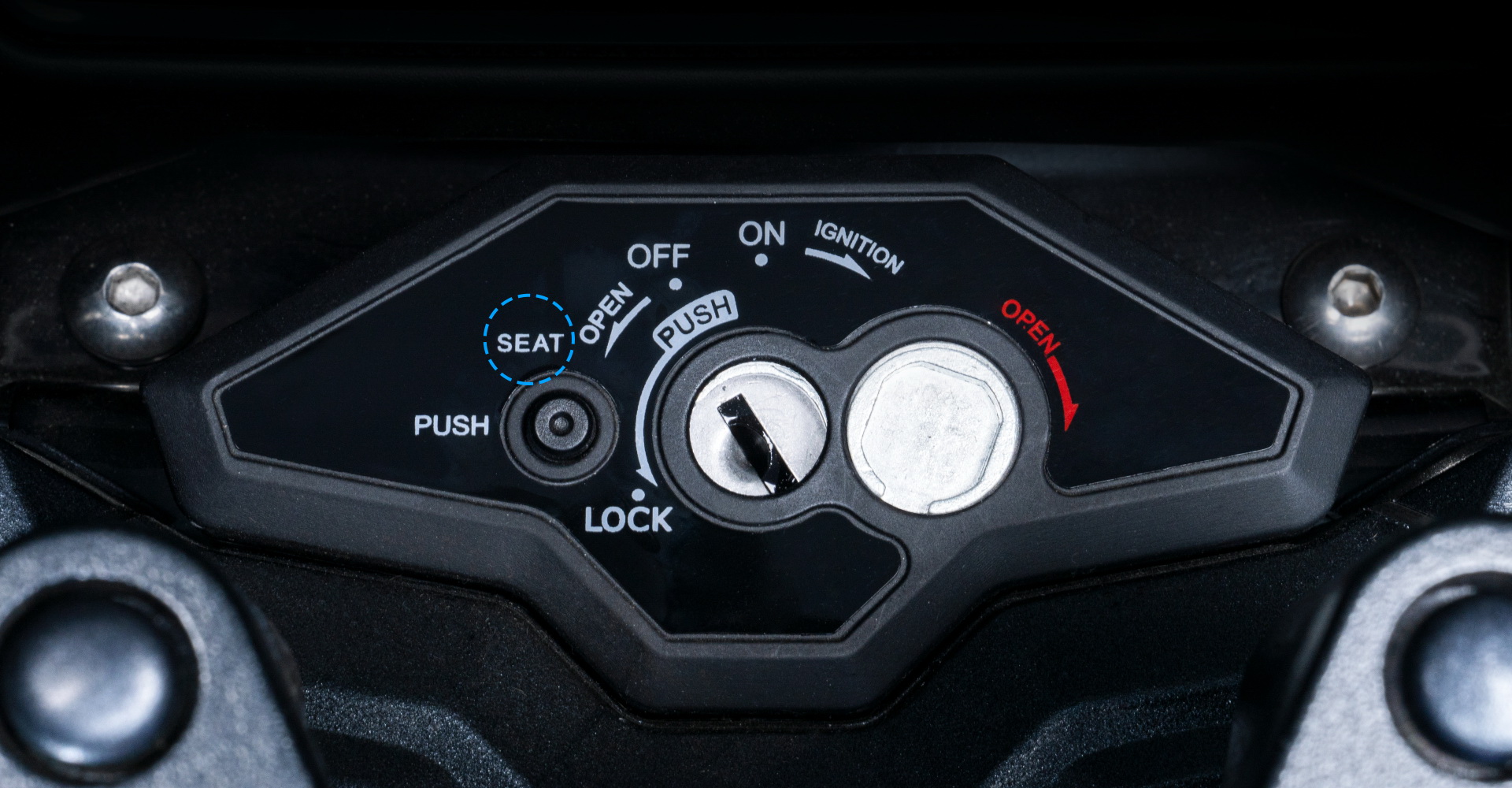

Electric cushion lock
The seat lock switch is integrated into the central control key, which is not only convenient to operate, but also free from the risk of mechanical transmission wear

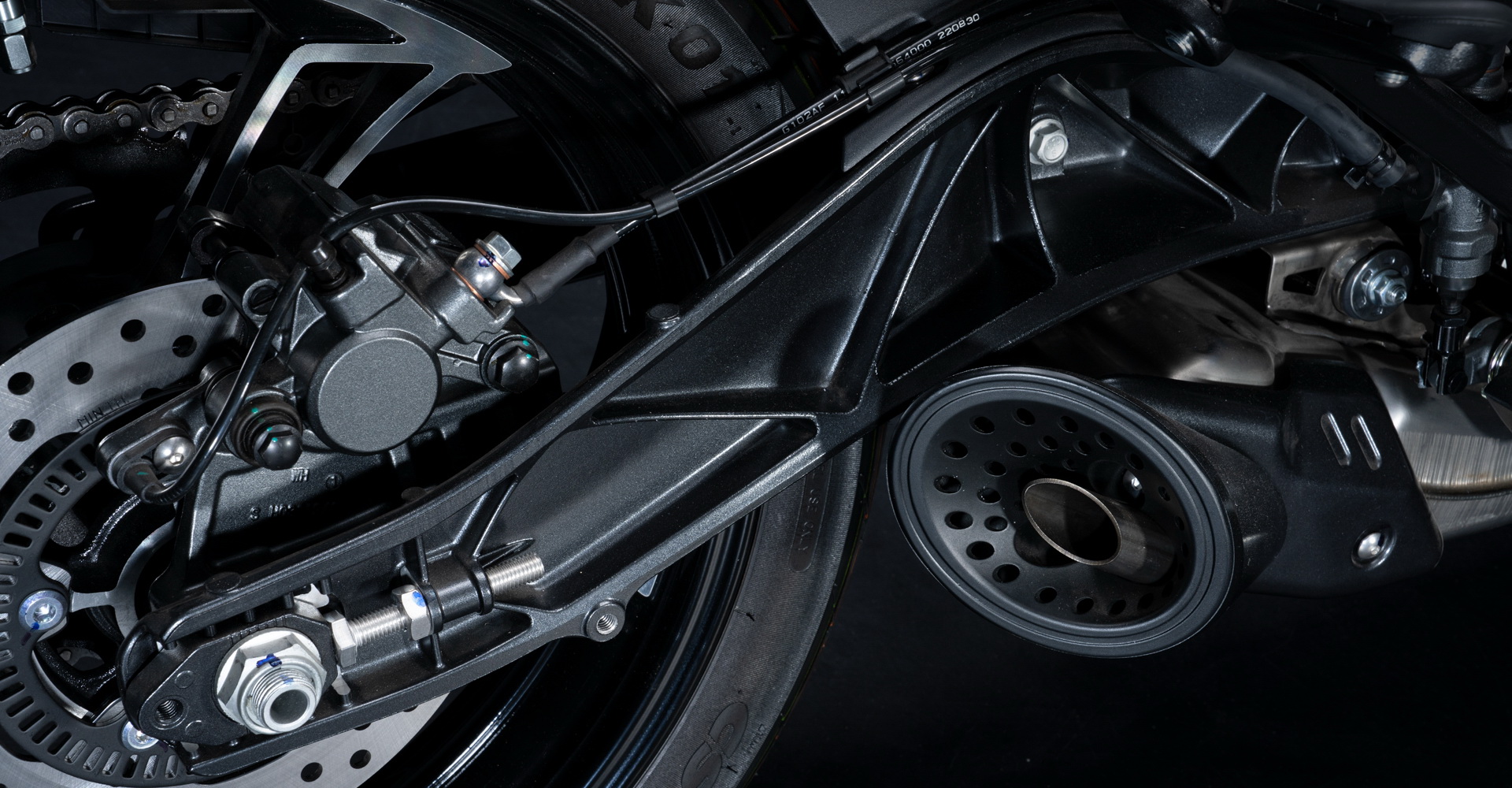

Rear Flat Fork of Aluminum Alloy
The special technology of integrated forming originates from the independent casting of Tayo (Guangdong Tayo Motorcycle Technology Co., Ltd). Through the combination of material and casting technology, the flexibility of aluminium alloy is close to that of steel tube. It is very difficult to break in bending and torsion. The characteristics of light weight and good rigidity of aluminium alloy are brought into full play.
Pure-aluminum cylinder
The inner wall of the cylinder without liner is thin due to the completely home-made pure-aluminum cylinder from die-casting to processing, and the space saved is used to widen the water passage, so as to take away the heat in the cylinder quickly. The good heat dissipation performance is an important factor to guarantee the improvement of the engine performance and the extending of engine life.

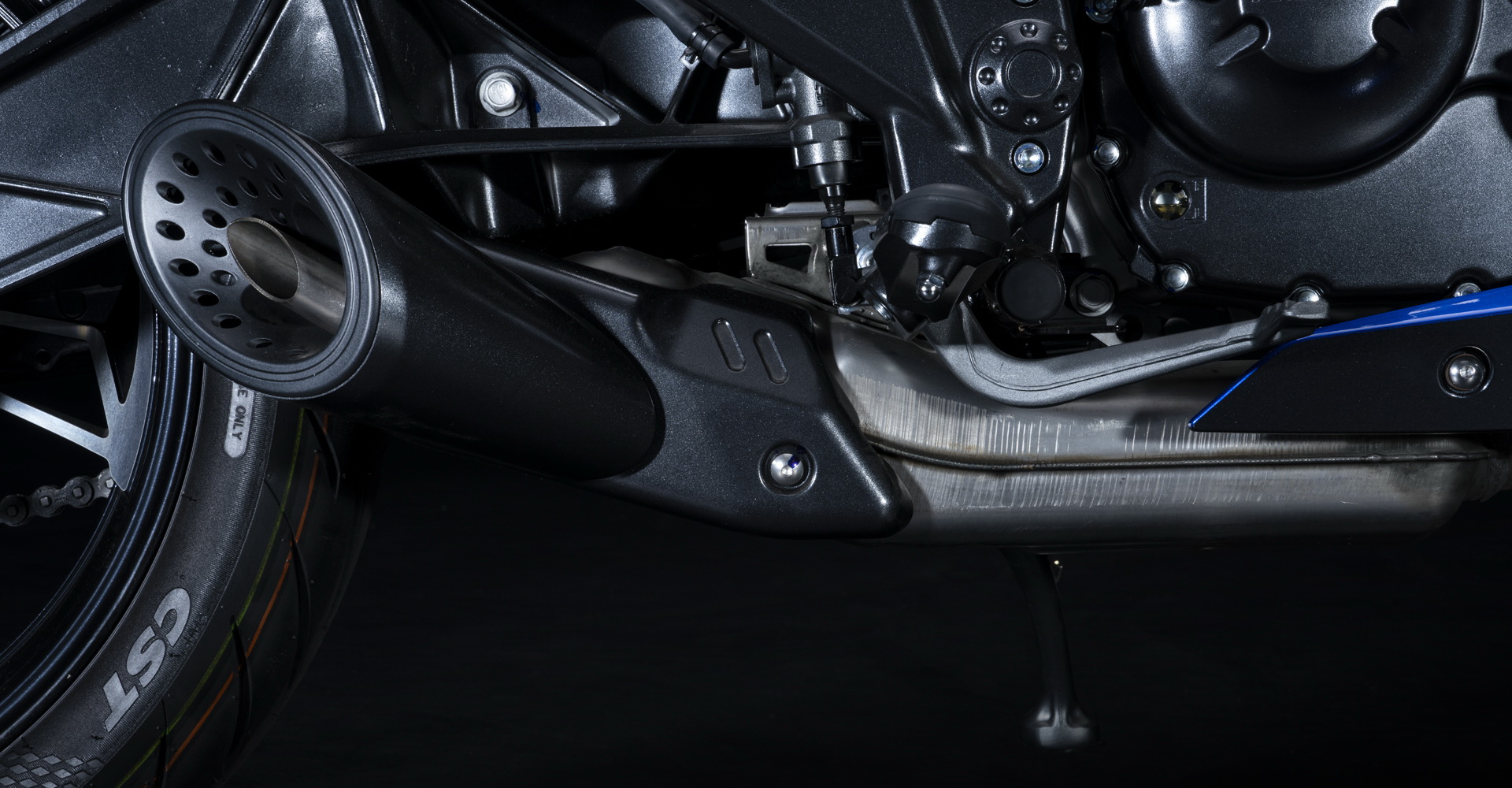

Stainless steel bottom muffler
Pure aluminum alloy anti-scalding plate, exquisite and beautiful design; the whole section uses automotive grade special stainless steel exhaust, high and low temperature resistance, corrosion resistance, to ensure long service life; national four standards, more safe and environmentally friendly

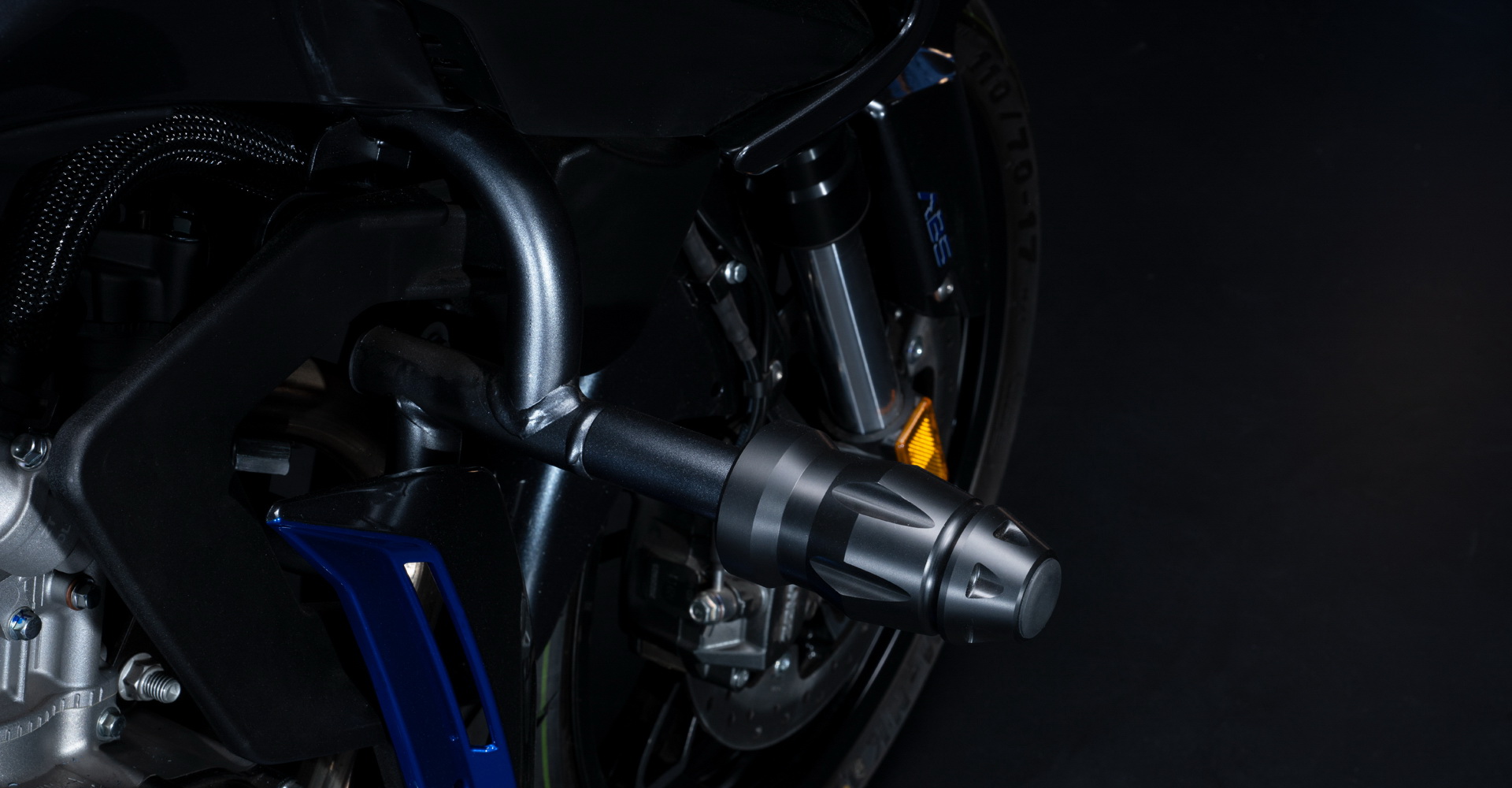

Standard bumper
动感前卫的造型,美观实用,让您在驾行中更安全。
The standard thick steel pipe bumper is integrated with the vehicle body, taking care of the riding safety of you and your vehicle, allowing you to drive without worry

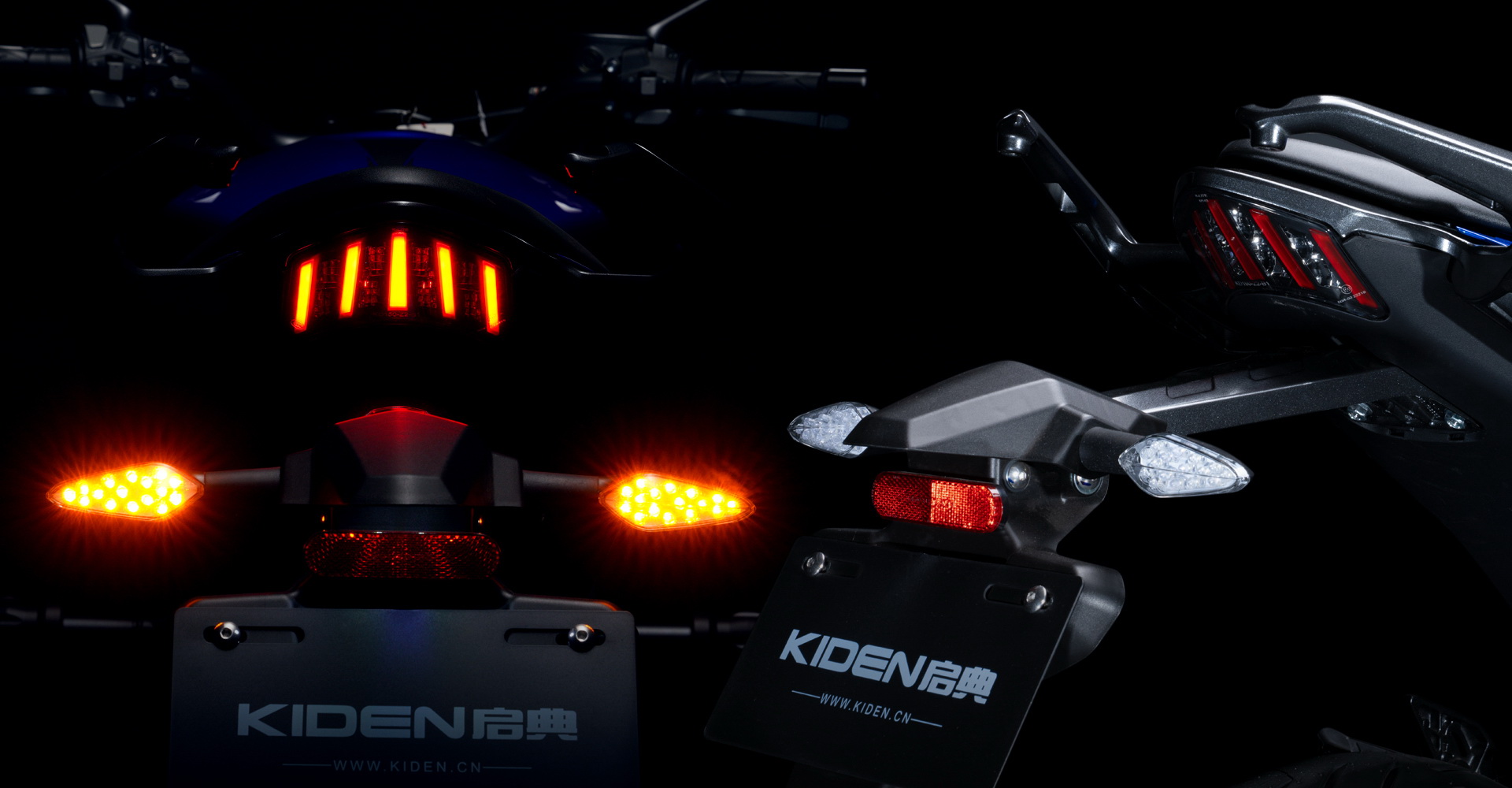

Rear light
Simple rear lights, the shape fits the style of the motorcycle, and the LED is more eye-catching.

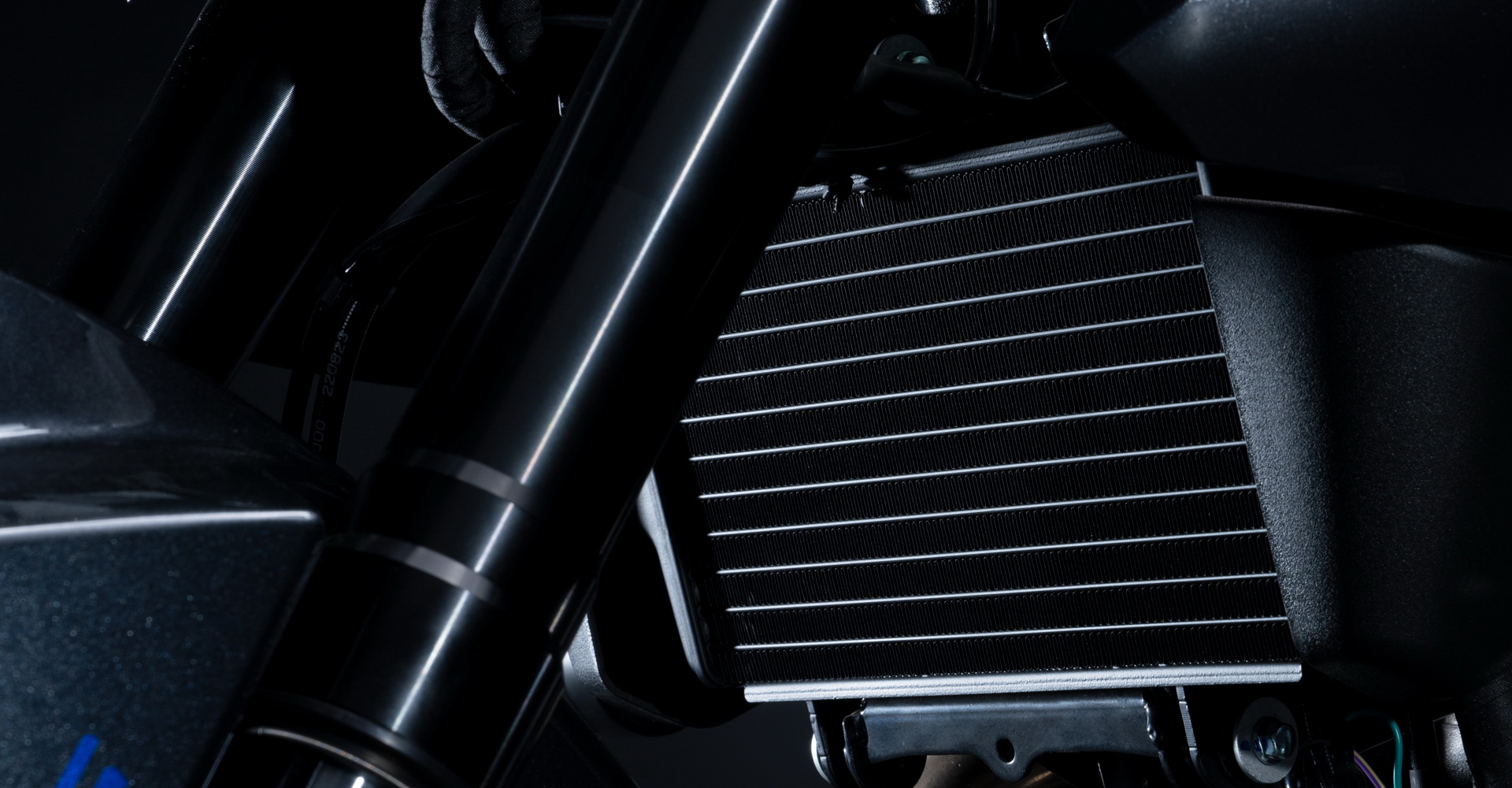

Large radiator
The integral large water cooled radiator has higher heat dissipation efficiency.
slipper clutch
It is equivalent to adding a layer of transmission protection between the engine and the rear wheel. When the speed difference is too large, it reduces the rush phenomenon of the clutch coupling moment; makes the clutch handle lighter.
