Multi-angle Exhibition
Technical Data
Whole vehicle     Power system   Suspension system
Length (mm) 2100 The body Aluminum alloy Frame system Steel pipe frame
Width (mm) 845 Cylinder number Single cylinder  Tire structure Bias tyre
Height (mm) 1120 Camshaft mode Single overhead camshaft(SOHC) Front rim size MT:2.75×16
Wheel base (mm) 1480 Bore X Stoke (mm) 58.0 x 56.7 Rear rim specification MT:3.75×16
Minimum ground clearance (mm) 137 Cooling system Water cooling Front tire specification 120/80-16
Gasoline tank volume (L) 16.5 Fuel 95 and above Rear tire specification 140/70-16
Seat height (mm) 700 Compression ratio  12.5:1 Front brake specification Disc brake
Displacement 150 Rear brake specification Disc brake
Fuel supply method Intelligent electrical fuel injection Headlamp/tail light/steering lamp LED
    Electrical fuel injection system BOSCH Brake system Dual channel ABS
    Ignition mode Electronic ignition
    Transmission mode Chain drive
    Idle speed (r/min)  1500 ± 100
    Maximum power (kW/rpm) 14 / 9250
    Maximum torsion (N.m/rpm) 16 / 7500
    Gearbox Constant mesh 6-section transmission
    Shift mode International gears
    Clutch Wet multi-disk type
    Economical consumption of fuel (L/km) 1.8 /100


KD150-C


Surging power, stable output, control strong energy
The newly designed engine has a 12.5:1 compression ratio, twist the throttle, fierce acceleration, 14kW, 16N.m power output and low fuel consumption, conquering your soul and arousing your blood genes in a hair-trigger pleasure.

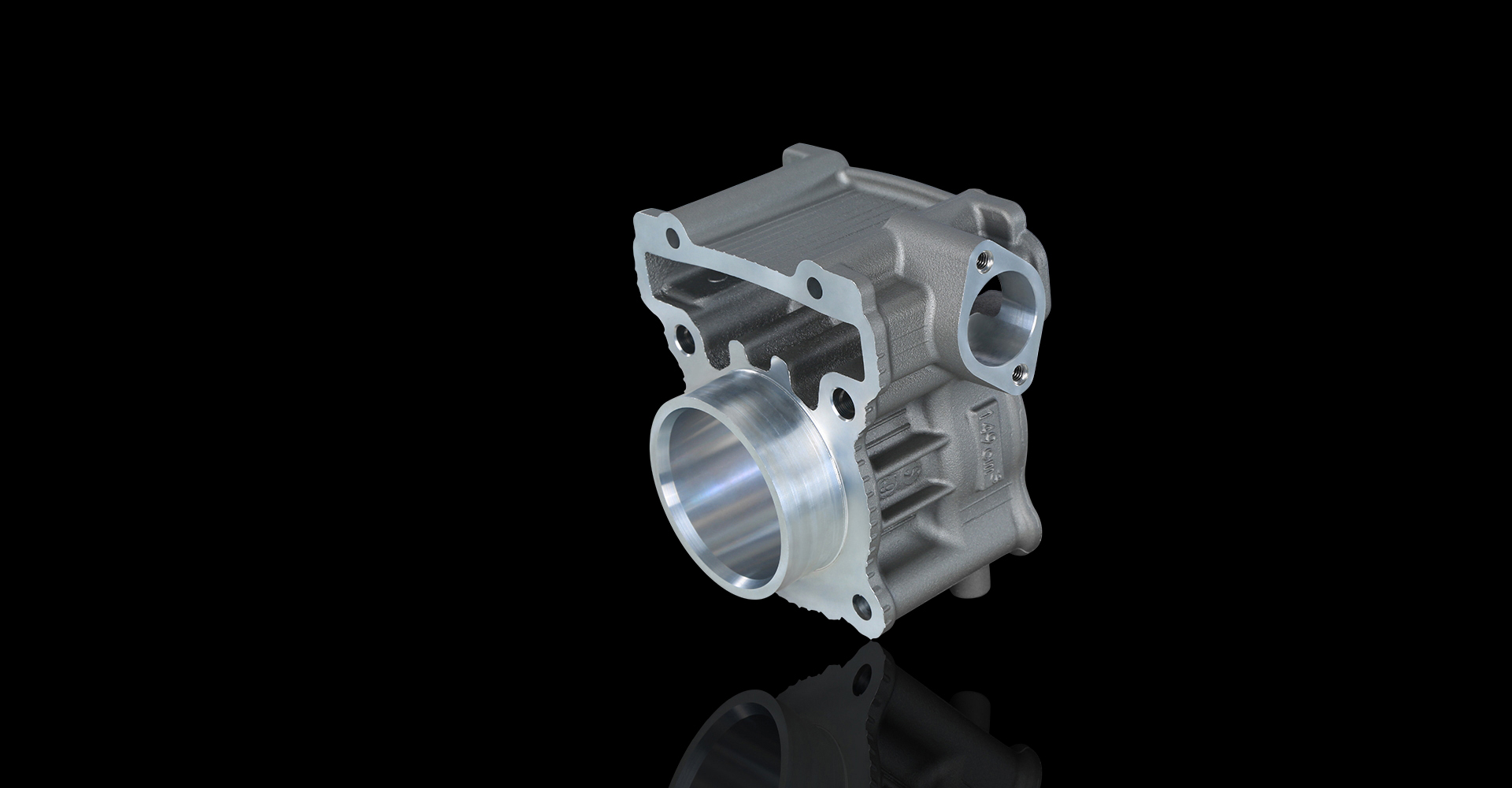

Thin liner free pure aluminum cylinder, the heat in the cylinder quickly away, improve heat dissipation, is an important guarantee to extend the life of the engine.
Stable control, fun driving, easy to experience dynamic charm

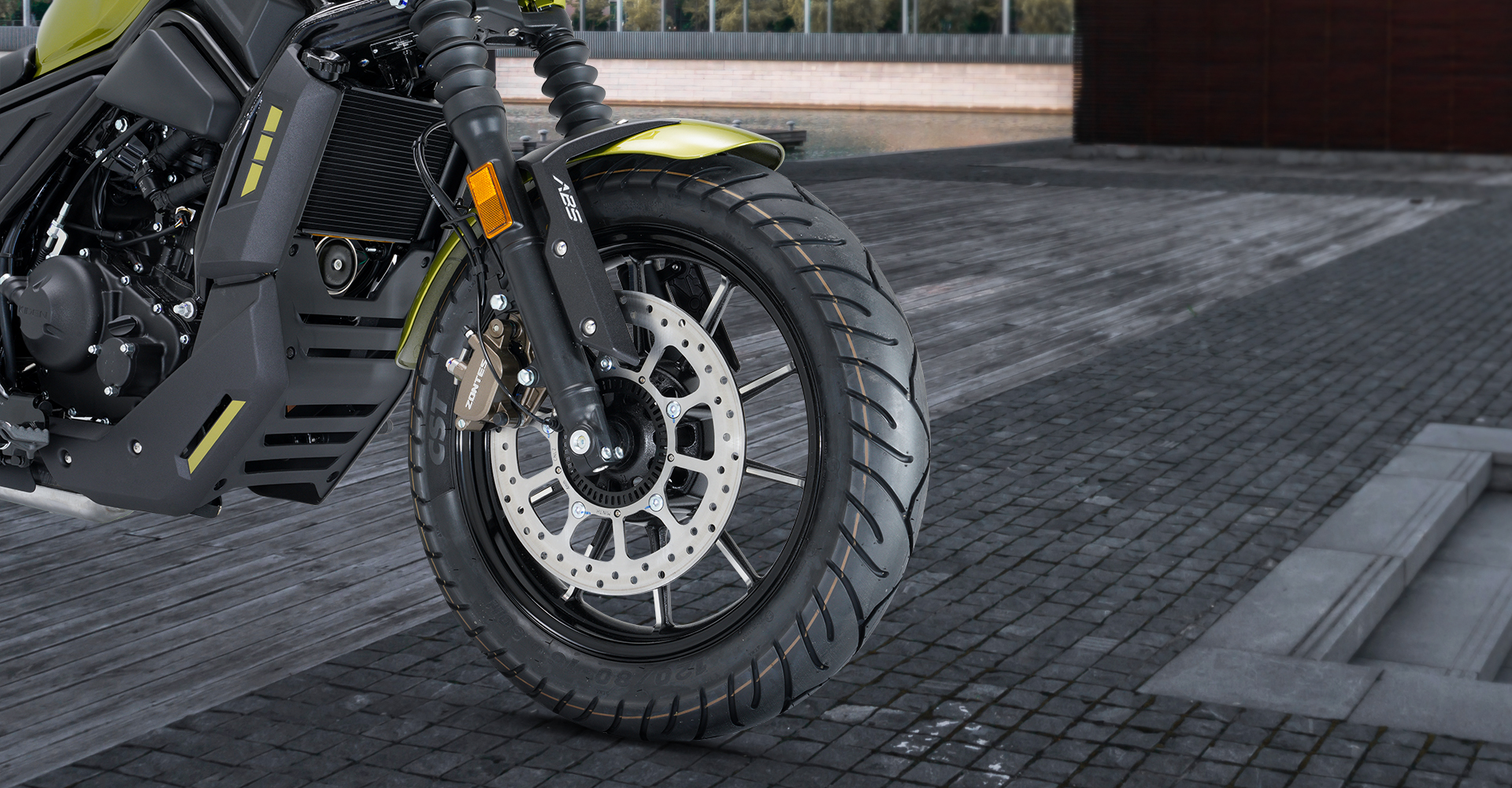

Fingertip level control, linear braking feel, front 300mm/ rear 230mm disc brake, providing more powerful braking force, bring more confident riding experience.

Lighter clutch handle, comfortable shift, make each control more smooth, gasoline and clutch work well together

Dual channel ABS delivers excellent performance in all riding conditions, allowing you to handle every moment with ease.

The wide rims and the hollow interior design, the close combination of lightweight and high strength, make the road more light.
Be safe, be fearless,release your heart's desires

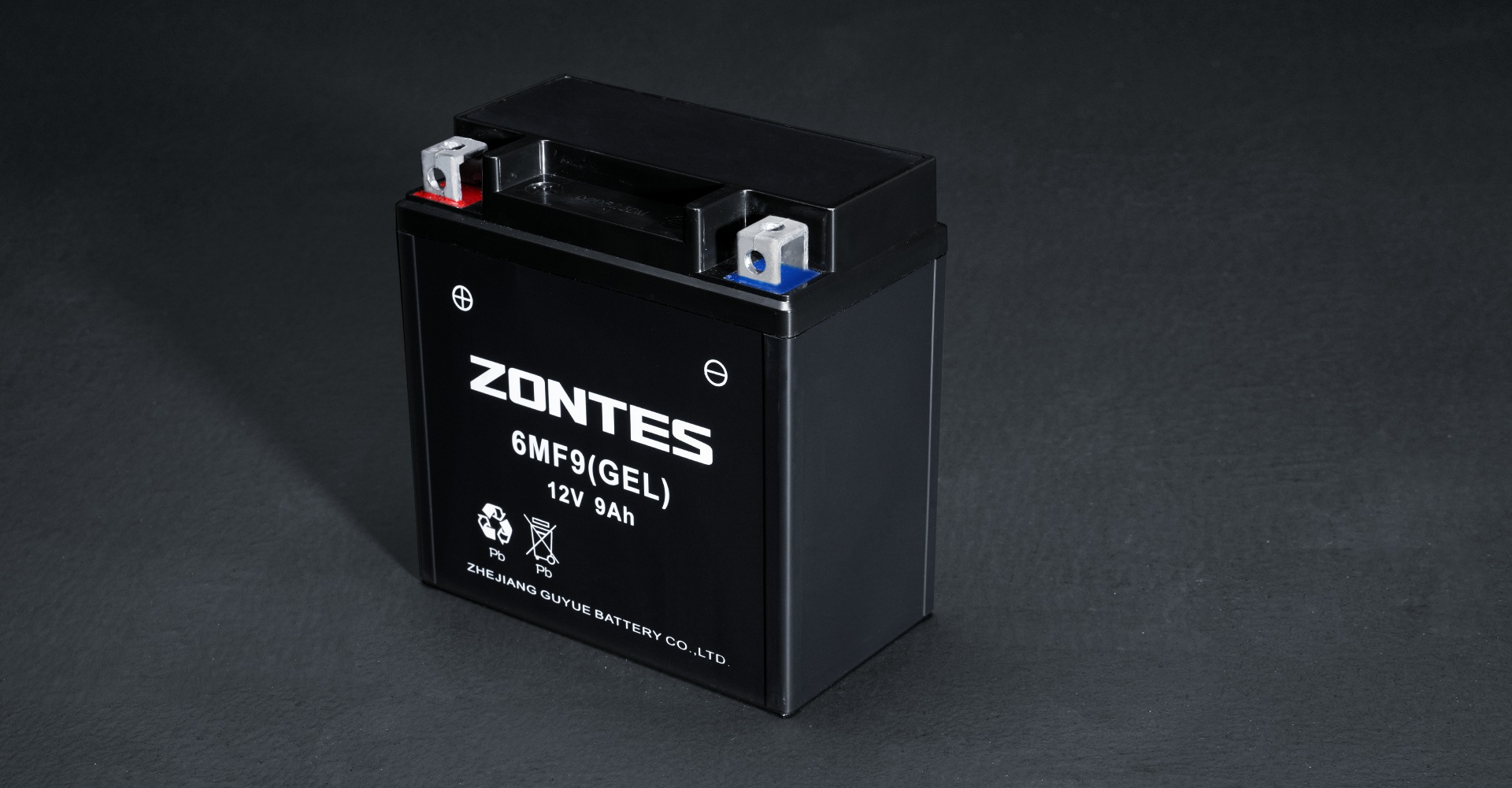

9AH large capacity battery provides strong battery life for driving the road, and the winter start is easier.

Whether before departure or during driving, tire pressure monitoring effectively avoids flat tires, increases driving safety, and escorts every trip.

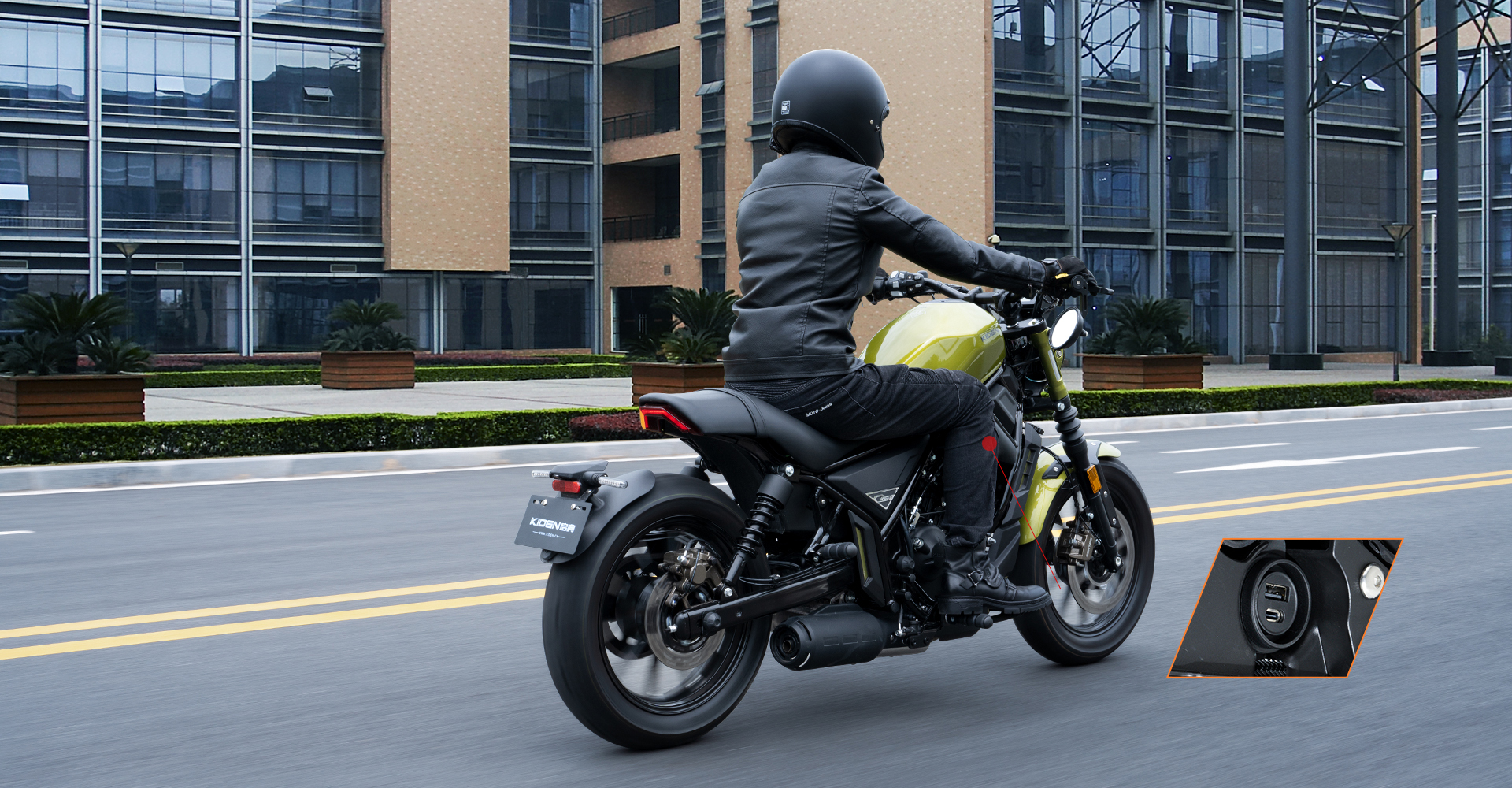

USB interface Type is composed of Type A and Type C double connector, the shell is made of high temperature flame retardant material, built-in high precision hardware current limiting chip, single port output power up to 18W, charging faster and more convenient, not afraid of long-distance, riding can be very free.

Bottom stainless steel muffler, the whole section uses automotive grade special stainless steel exhaust, high and low temperature resistance, corrosion resistance, national four standards, safer and more environmentally friendly, leisurely, easy bending, free to enjoy the wind.
Smart and intimate, instantly must do, you can easily control the rhythm of travel
The 2.5 generation keyless control system uses advanced encryption technology, has IP67 waterproof performance and good anti-theft performance, motorcycleries the induction key, small size, large capacity, the key in hand, easy to ride away.

The key distribution of the electric function is left and right, and the design details are amazing, which can be triggered at any time. Every key can open your new imagination and easily open your beautiful riding.

Full LCD intelligent digital instrument has a simple instrument page, eye-catching fault lights, so that you can freely control each time, and give you a more smooth and smooth driving experience.

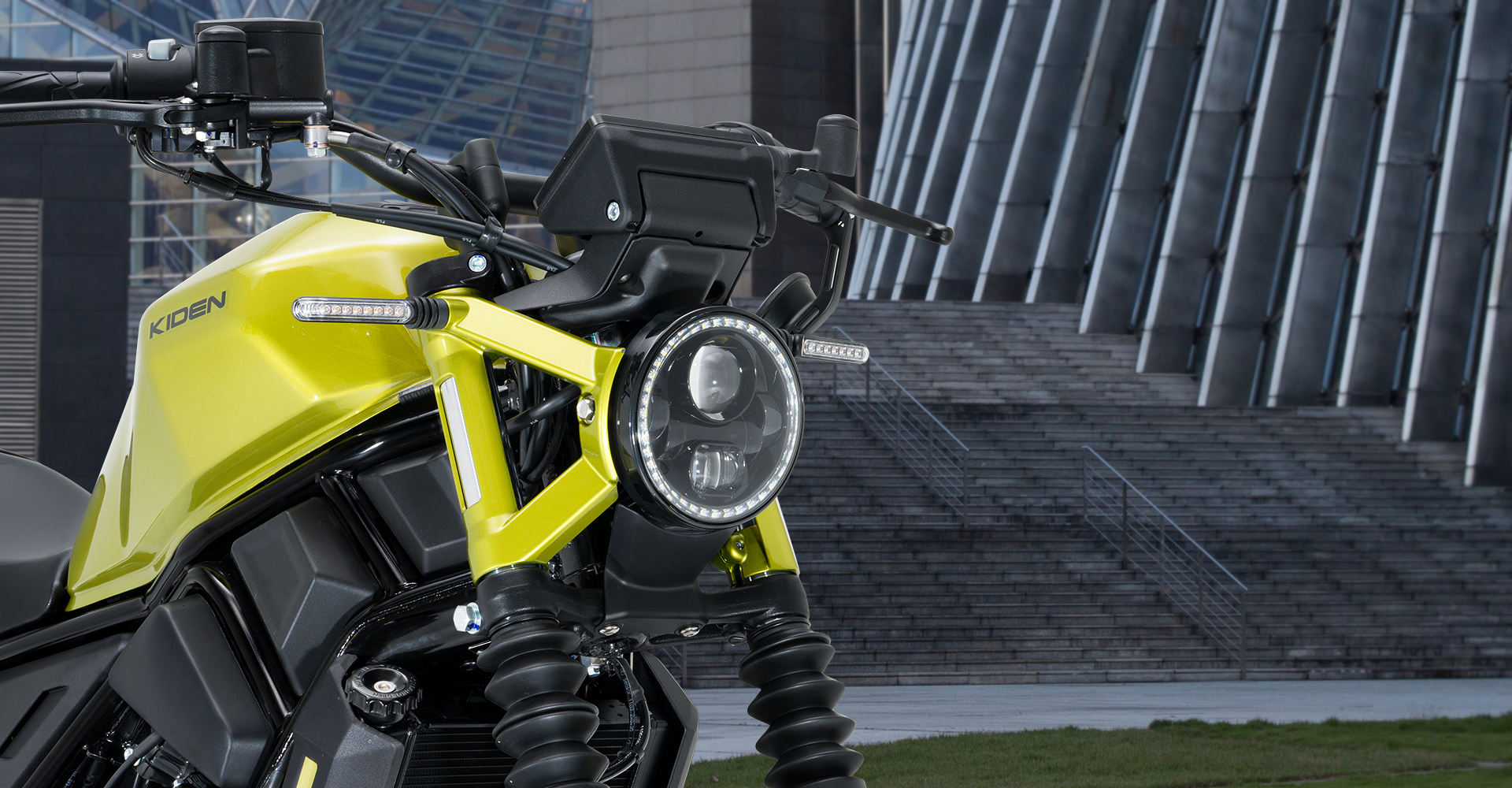

Retro round lights, minimalist interpretation, take you to find the charm of day and night

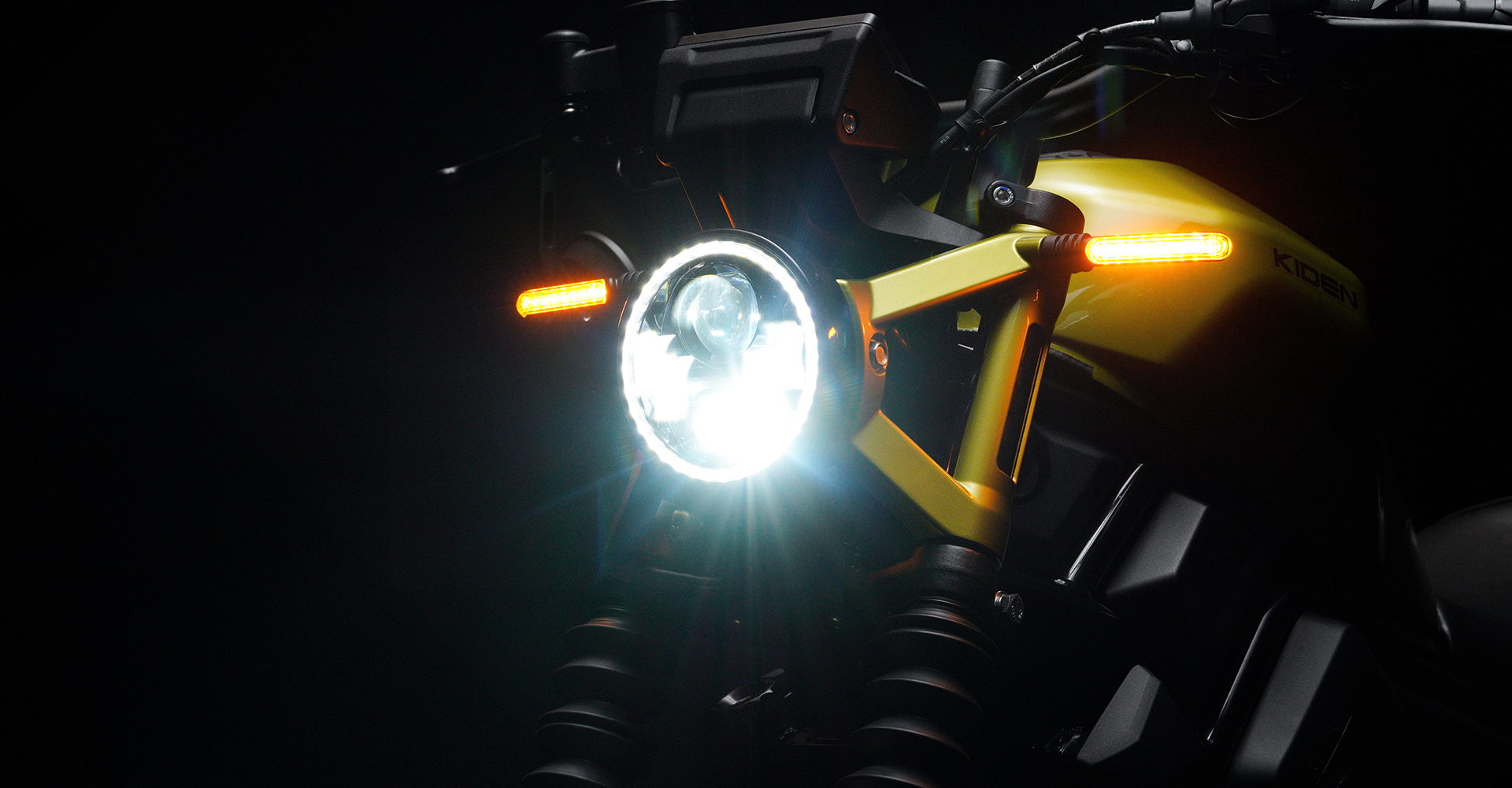

Auto-grade LED light source, natural soft color temperature, retro round lights illuminate the modern world, through the darkness, awakening every departure between day and night.
New tires, ready to go, can't hide your sporting ambitions

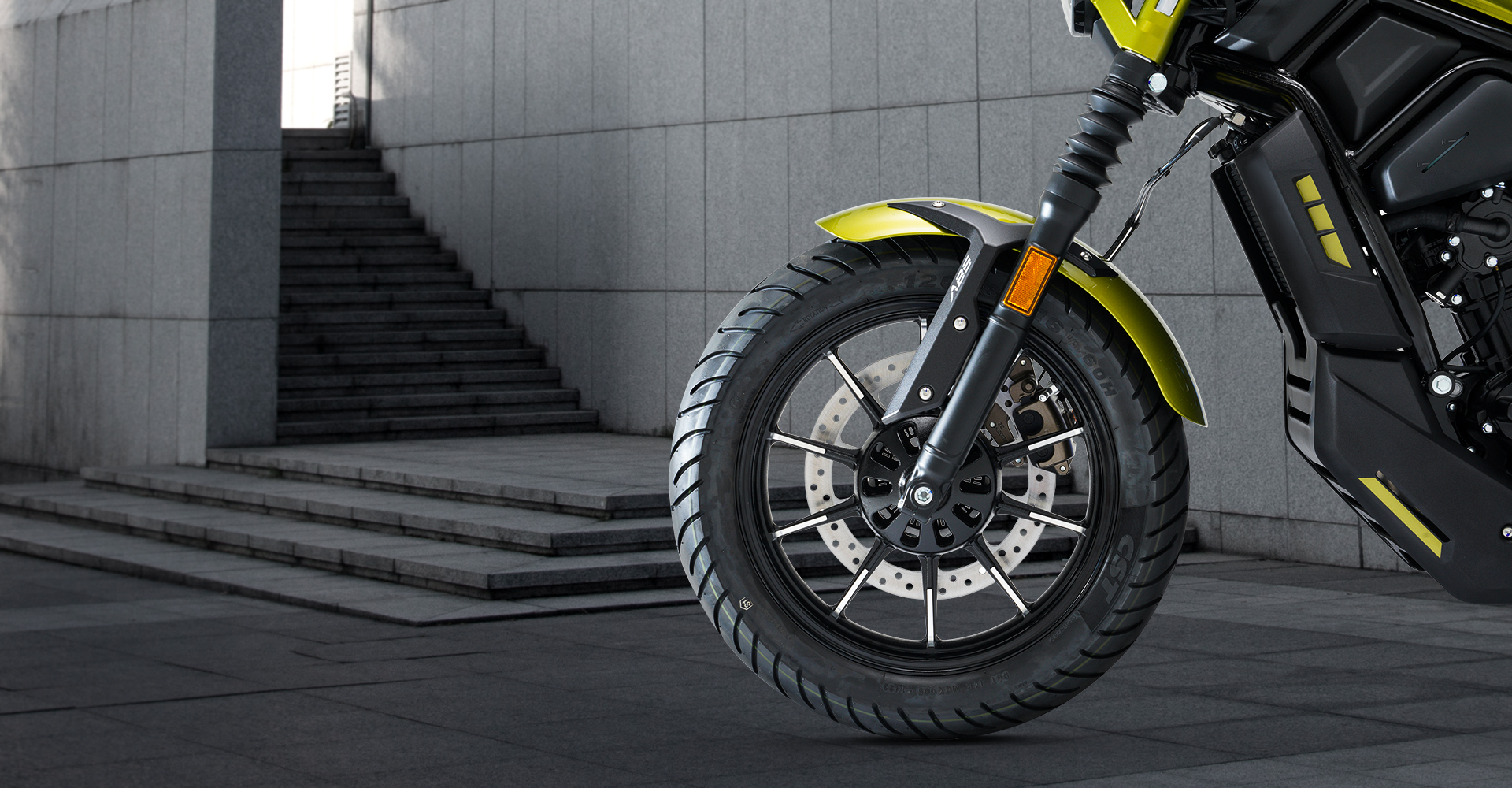

Thick tire walls, deep patterns, and encrypted drainage grooves make every grit thrown by the tires become a friction between the body and the wind, regardless of mountains and rivers, you can easily ride everywhere.
Pay attention to detail, be relaxed and comfortable, and show your free attitude
Soft seat cushion, full of sports wind, easy to ride on the road, riding experience to a new height, so that you really set off the wind of freedom.

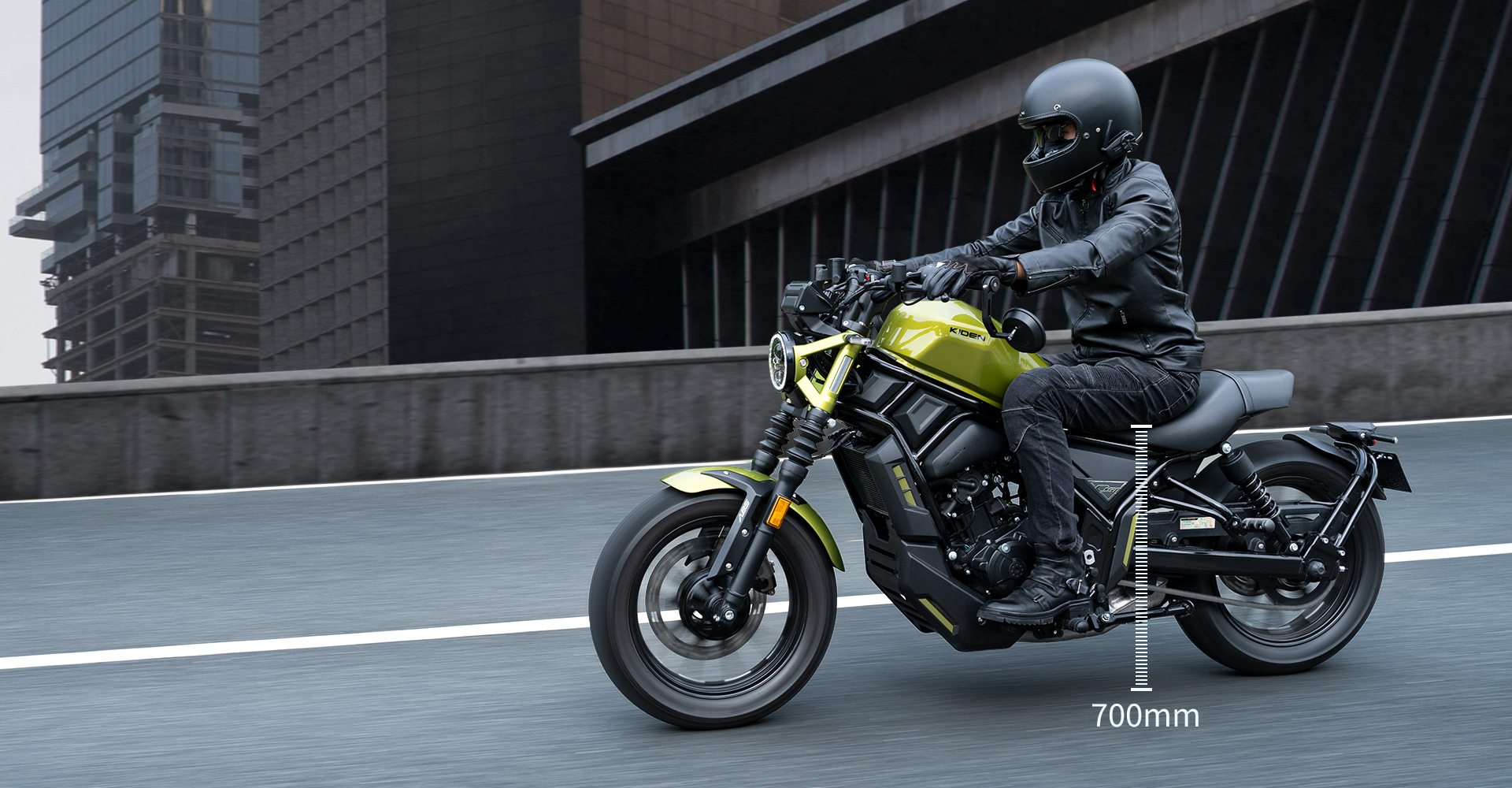

700mm seat height creates your own personal riding mode, which is comfortable and does not reduce points, and gives you a full sense of security on the way to explore the distance.

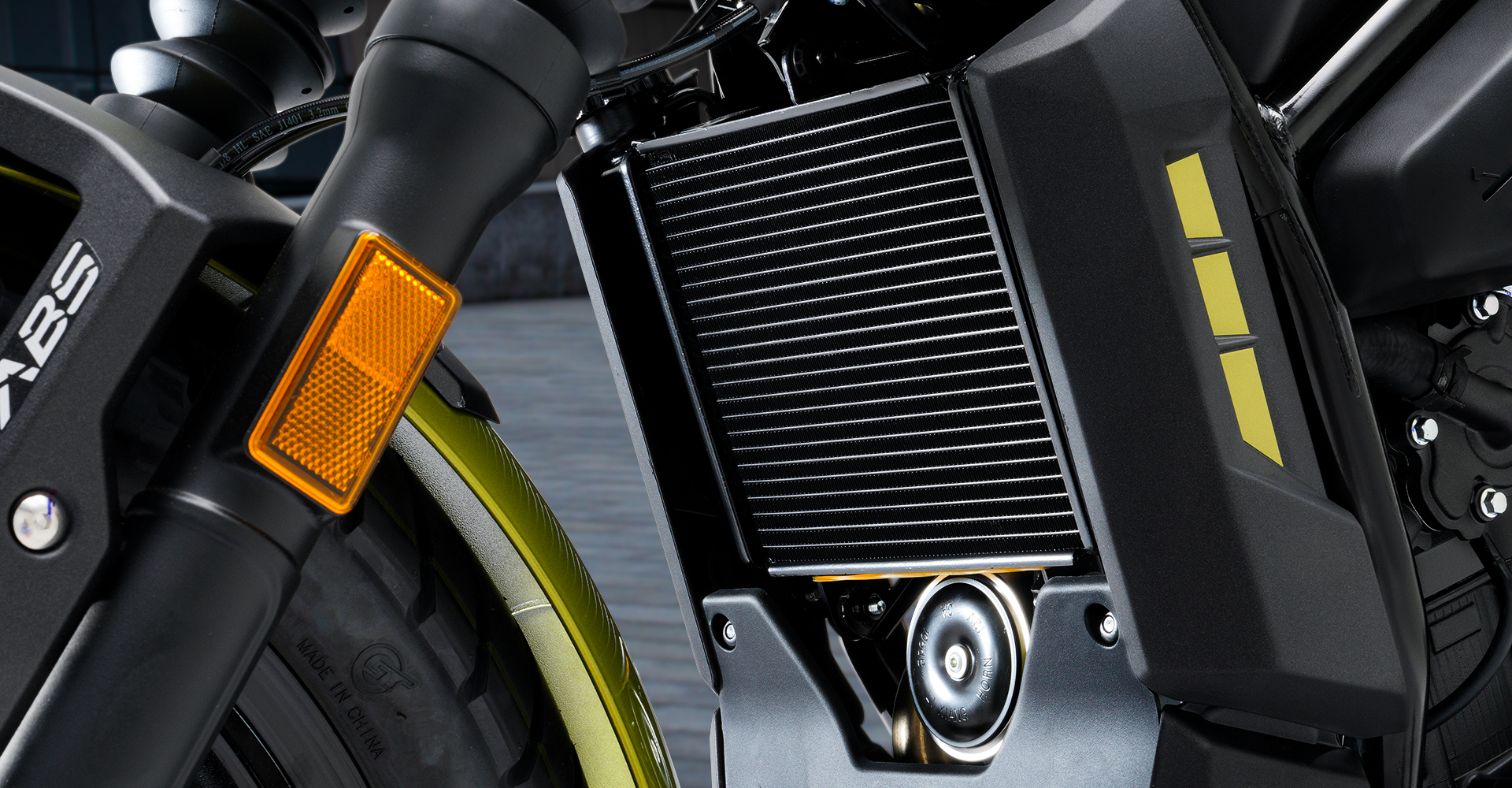

Integral large area water-cooled radiator, heat dissipation efficiency is higher, hot weather, free and easy between temperature and style, accompanied by wind.
Multiple inspiration, condensed in type, grasp personality attitude

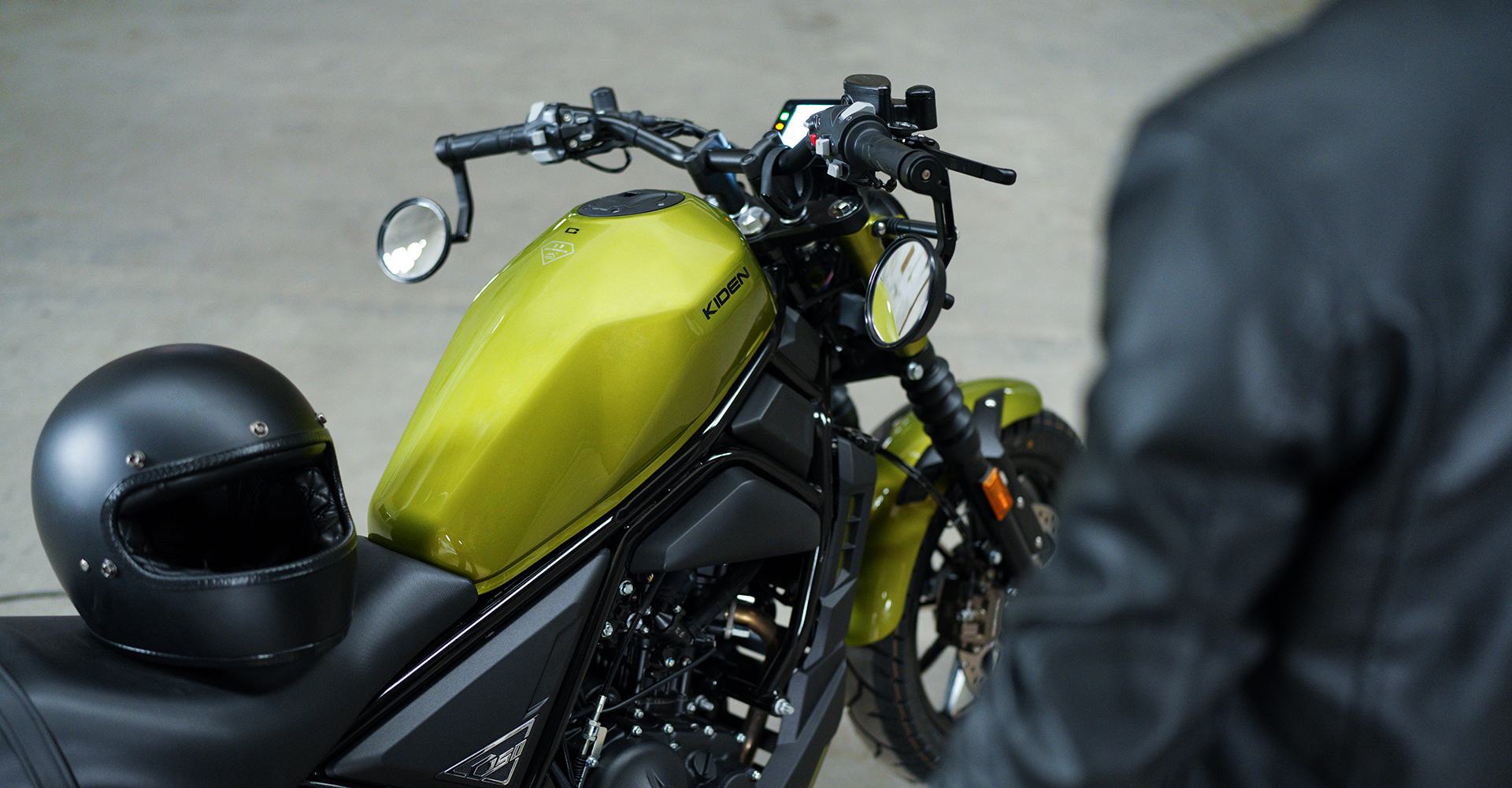

The single side galvanized sheet is used in the oil tank, which can effectively prevent the blockage of the oil filter cotton and the leakage of the oil tank.

The cool backlight display of the new second generation handle switch and the deputy handle switch can not be ignored, the waterproof rating reaches IP67, the waterproof performance is more stable, and every detail reveals the superior texture.

Sharp body with oval rear flat fork, safe and durable, aesthetic modeling, make the motorcycle full of personality.
